How to Use a Thermometer in HVAC Systems Like a Pro

To use a thermometer in HVAC systems, place it near the air intake or outlet to accurately measure temperature differences for efficient system performance assessment.

Proper temperature measurement is critical for HVAC system performance, efficiency, and troubleshooting. Whether you’re working on residential units or large commercial systems, using thermometers correctly ensures accurate diagnostics and optimal operation.

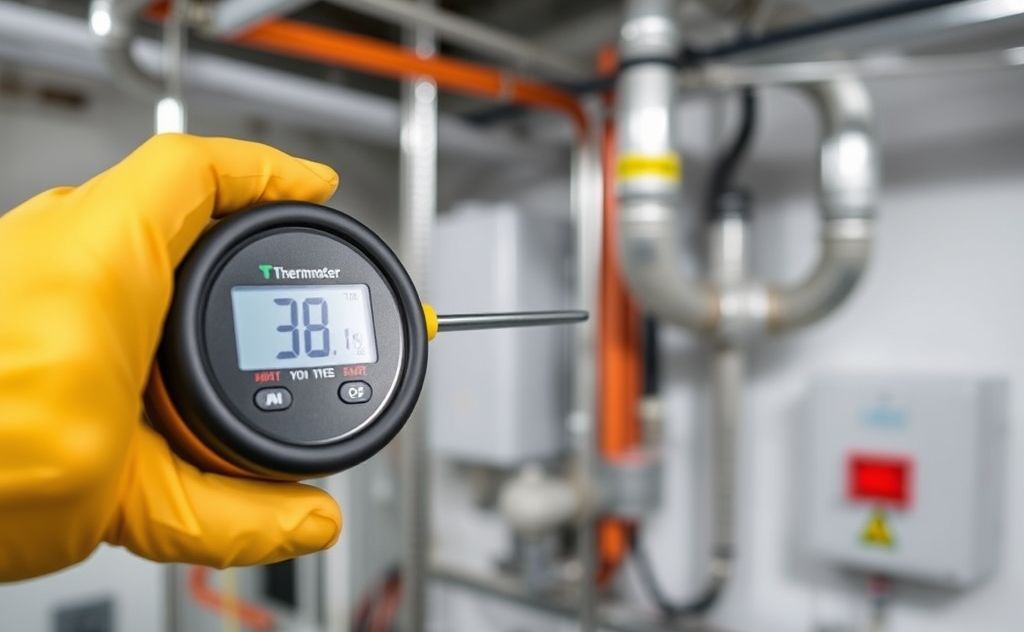

Thermometer use in HVAC systems for optimal performance

Types of HVAC Thermometers

HVAC technicians use several thermometer types depending on the application and required precision:

1. Digital Probe Thermometers

These provide instant digital readings with metal probes that insert into ducts or near components. Models like the Elitech LMG-10 combine manifold gauges with thermometer functions for comprehensive diagnostics.

2. Bi-Metal Dial Thermometers

Stainless steel construction with 5″ dials for easy reading. The bi-metal strip expands/contracts with temperature changes, moving the dial needle. Accuracy is typically ±1% of scale.

3. Infrared Non-Contact Thermometers

Measure surface temperatures from a distance. Useful for checking ductwork, electrical components, or hard-to-reach areas without direct contact.

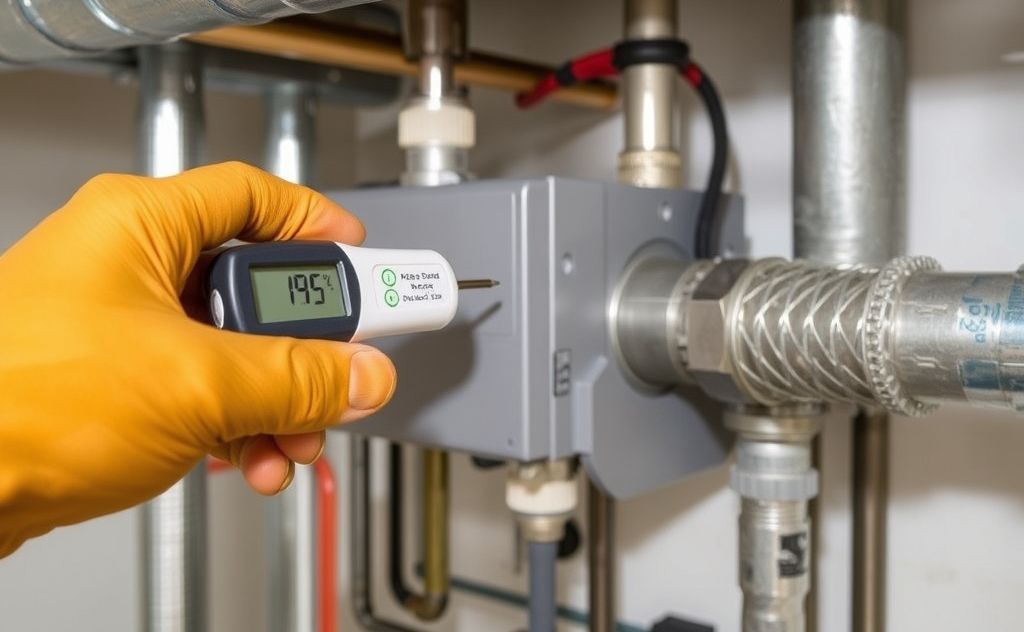

Proper thermometer placement in HVAC systems

Proper Thermometer Placement

Accurate readings depend on correct placement:

Duct Temperature Measurement

  • Insert probe 3-5 duct diameters downstream from turns or obstructions
  • Ensure probe tip is in the center of the airstream
  • For round ducts, measure at 20% and 80% of diameter

Component Temperature Checks

Component Measurement Method
Evaporator Coil Measure at multiple points across coil face
Compressor Check discharge line within 6″ of compressor
Condenser Measure entering and leaving air temperatures

Installation Best Practices

Follow these guidelines for reliable measurements:

Thermometer Wells

Always use thermometer wells in hydronic systems. As noted in industry resources, wells prevent system drainage when replacing thermometers and improve accuracy.

READ MORE  How to Ensure Clinical Thermometer Accuracy: A Complete Guide

Stem Length Considerations

For pipe measurements:

  1. Stem should extend at least halfway into the pipe
  2. In small pipes (under 2″), use extended stem thermometers
  3. Install at elbows or tees to ensure fluid contact

Advanced Diagnostic Techniques

Beyond basic temperature checks, thermometers help diagnose system issues:

Delta T Analysis

Measure temperature difference between:

  • Supply and return air (should be 15-20°F for AC)
  • Evaporator entering/leaving refrigerant lines
  • Condenser water in/out temperatures

Temperature Mapping

Create system performance baselines by:

  1. Recording temperatures at multiple points
  2. Comparing to manufacturer specifications
  3. Tracking changes over time

For complex HVAC controls, consider integrating with smart thermostats like Daikin’s connected systems that provide detailed temperature monitoring and system diagnostics.

Maintenance and Calibration

Ensure ongoing accuracy with:

Regular Verification

Check thermometer accuracy annually against known references like ice baths (32°F/0°C) or boiling water (212°F/100°C at sea level).

Proper Storage

Protect dial thermometers from vibration and digital models from extreme temperatures when not in use.

Battery Management

For digital models, replace batteries proactively and carry spares during critical measurements.
