How to Keep Your Outdoor Water Heater from Freezing

To prevent an outdoor water heater from freezing, insulate the unit, use heat tape, and maintain a consistent power supply to keep water circulating.

Outdoor water heaters are vulnerable to freezing temperatures, which can cause costly damage. Unlike indoor units, they lack natural insulation from your home’s warmth. This guide covers proven methods to protect your investment and ensure hot water all winter.

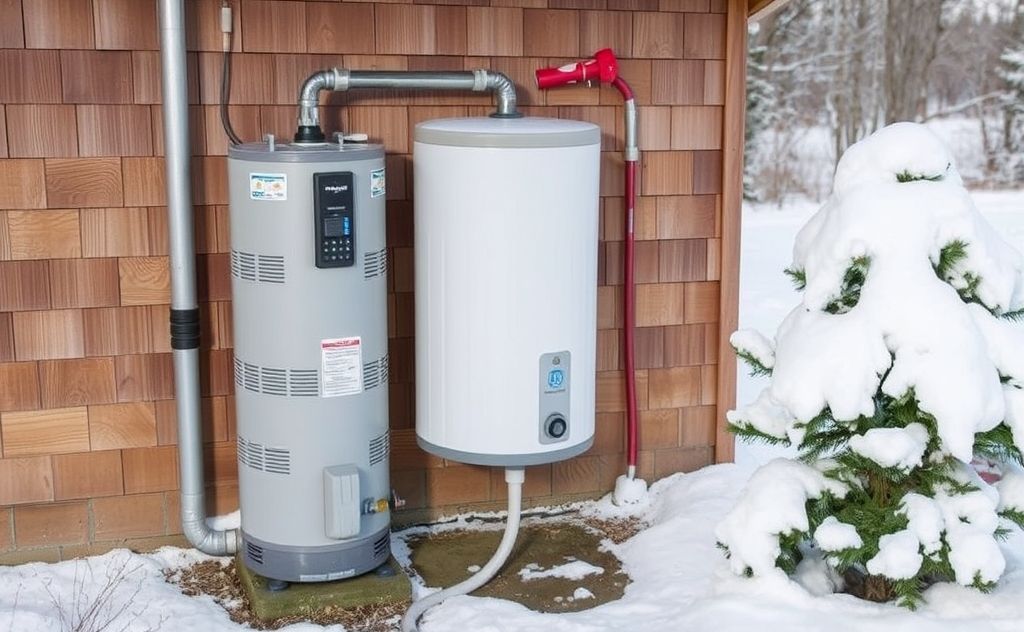

Outdoor water heater protection in winter

Why Outdoor Water Heaters Freeze

Outdoor units face three main freezing risks:

  • Exposed piping: Water lines lose heat faster when exposed to wind
  • No ambient warmth: Lacks household heat that protects indoor units
  • Power dependence: Freeze protection systems fail during outages

Critical Components at Risk

Component Freeze Damage Risk
Heat exchanger High – Cracks when water expands
Water valves Medium – Seals can fail
Condensate drain High – Ice blocks drainage
5 freeze protection methods for outdoor heaters

5 Essential Freeze Protection Methods

1. Insulate All Exposed Pipes

Use foam pipe insulation (minimum R-3 rating) on all water lines. For extreme climates, combine with heat tape that automatically activates below 40°F.

Pro Tip:

Wrap valves and elbows with extra insulation – these areas freeze first.

2. Maintain Power Supply

Most units need electricity for freeze protection. Consider:

  • Battery backup (minimum 8-hour runtime)
  • Portable generator with automatic transfer switch
  • For gas models, keep pilot light on for residual heat

3. Create a Wind Barrier

Build a simple enclosure using:

  1. Pressure-treated wood frame
  2. Insulated panels (leave 12″ clearance around unit)
  3. Vented door for airflow

4. Install Recirculation System

A recirculation pump keeps water moving through pipes. Options include:

  • Dedicated return line (most effective)
  • Thermostatic valve system
  • Timer-controlled operation
READ MORE  Can You Lay a Water Heater Down? Risks & Safe Transport Tips

5. Drain for Long Absences

If leaving for 48+ hours in freezing weather:

  1. Turn off water supply
  2. Disconnect power/gas
  3. Open all drain valves
  4. Use air compressor to blow out remaining water

Emergency Thawing Procedures

If your unit freezes:

  1. Turn off power immediately
  2. Open nearest hot water faucet
  3. Apply heat with hair dryer (never open flame)
  4. Check for leaks once thawed
  5. Contact professional if damage suspected

When to Call a Professional

Seek help if you notice:

  • Water leakage
  • Error codes on display
  • Unusual noises during operation
  • No hot water after thawing

Climate-Specific Recommendations

Mild Winters (Rarely below 20°F)

Basic insulation plus pipe heating cables should suffice. The U.S. Department of Energy recommends maintaining at least 1/2″ foam insulation on all pipes.

Severe Winters (Below 0°F common)

Consider these advanced measures:

  • Insulated enclosure with thermostatically controlled heater
  • Underground pipe routing below frost line
  • Whole-house generator backup

For extreme cold, indoor propane heaters can provide supplemental warmth to utility areas.

Manufacturer-Specific Tips

Navien Units

Enable recirculation mode in settings. Keep power connected at all times – the freeze protection works even when unit appears off.

Rinnai Models

Use the proprietary frost protection kit. Never block air intake vents, as this reduces freeze protection effectiveness.

EcoSmart Electric

These require 240V power for freeze protection. Consider a UPS battery backup sized for your model’s wattage.
