How To Install A Solar Air Heater: DIY Guide & Expert Tips

To install a solar air heater, mount the unit on a south-facing wall, connect it to your home’s ventilation system, and ensure proper insulation for efficiency.

Solar air heaters provide eco-friendly heating by converting sunlight into warm air. With proper installation, they can reduce energy costs by 30-50% during colder months. This guide covers everything from material selection to advanced installation techniques.

Solar air heater installation step-by-step guide

Choosing The Right Solar Air Heater Design

Two primary designs dominate solar air heating:

Design Type Efficiency Best For
Aluminum Can Array 40-50% Small spaces, DIY beginners
Charcoal Screen System 55-65% Larger areas, experienced builders

The charcoal screen design offers superior performance due to increased surface area. As noted in our guide to modern heater materials, surface texture significantly impacts heat absorption.

Essential Materials For Construction

Core Components

  • Wooden frame (cedar or pressure-treated lumber)
  • Polycarbonate or tempered glass cover (4-6mm thickness)
  • Insulation foam boards (1-2″ thickness)
  • Blackened aluminum sheets or slate tiles
  • Metal screening (aluminum or stainless steel)

Air Circulation System

  • 4″ diameter PVC ducts
  • Inline fan (80-120 CFM)
  • Backdraft damper
  • Thermostatic control

For optimal performance, consider integrating components from our built-in heating systems for hybrid functionality.

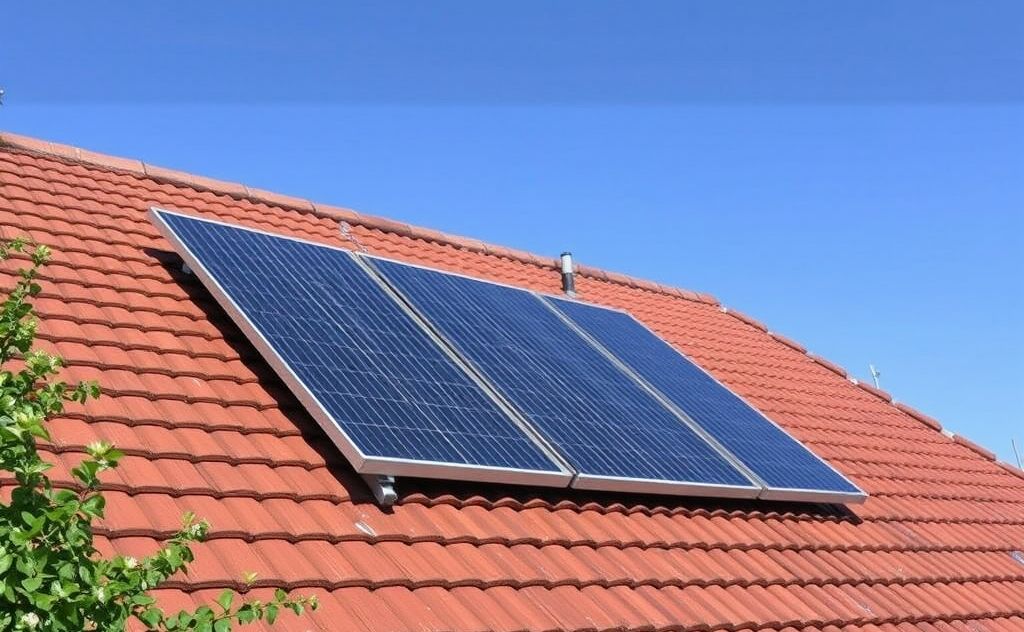

Step by step guide for solar air heater setup

Step-By-Step Installation Process

1. Frame Construction

Build a weatherproof frame using 2×4 lumber. The dimensions should match your glazing material size (typically 4’x8′). Route a 1/4″ groove for the glazing to sit flush.

2. Insulation Installation

Line the interior with rigid foam insulation. Use foil-faced polyisocyanurate for maximum R-value (R-6 per inch). Seal all edges with aluminum tape.

3. Heat Absorber Assembly

For the charcoal screen design:

  1. Cut aluminum window screening into 12″ wide strips
  2. Create a wave pattern using 1″ spacers
  3. Secure with aluminum pop rivets every 6 inches
  4. Paint all surfaces with high-temperature black paint
READ MORE  Essential Solar Heater Maintenance: Keep Your System Running Efficiently

4. Ductwork Configuration

Install two 4″ ducts:

  • Bottom duct: Room air intake (install damper)
  • Top duct: Heated air output (add inline fan)

According to Build It Solar, optimal airflow velocity is 2-3 CFM per square foot of collector area.

5. Glazing Installation

Secure polycarbonate or tempered glass using:

  • Neoprene gaskets
  • Aluminum retaining strips
  • Silicone sealant (UV-resistant)

Advanced Performance Enhancements

Thermal Mass Integration

Add concrete backer board behind the absorber to:

  • Store heat for cloudy periods
  • Prevent rapid temperature fluctuations
  • Increase overnight heat retention

Automated Controls

Install a differential thermostat to:

  1. Monitor collector and room temperatures
  2. Activate fan when collector is 15°F warmer
  3. Prevent reverse thermosiphoning at night

The U.S. Department of Energy recommends a 5-10°F temperature differential for optimal efficiency.

Seasonal Adjustments

Optimize performance year-round:

  • Winter: Angle collector at latitude +15°
  • Summer: Add shading or ventilation
  • Shoulder seasons: Adjust angle to latitude

Maintenance & Troubleshooting

Annual Maintenance Checklist

  • Clean glazing surface (mild soap solution)
  • Inspect seals and gaskets
  • Check fan operation
  • Verify thermostat calibration

Common Issues

Problem Solution
Condensation inside Add ventilation holes or desiccant
Reduced airflow Clean filters, check duct obstructions
Overheating Install bypass damper or shading

For complex electrical components, refer to our water heater thermostat guide for compatible control systems.
