Getting a high temperature sensor reading is one thing. Getting an accurate one is another. That’s where calibration comes in. It’s the process of comparing your sensor’s output against a known, more accurate standard. Without it, you’re essentially guessing, and in high-stakes industrial, scientific, or manufacturing environments, a guess can be costly, unsafe, or lead to product failure.
Think about it. A slight drift in your furnace’s temperature sensor could ruin a batch of ceramics or compromise a heat treatment process. Accurate temperature control is foundational, whether you’re monitoring a kiln, a chemical reactor, or even ensuring your hot water heater operates safely and efficiently. For professionals who need to verify conditions beyond just heat, tools like the Apera Instruments pH meter are often part of a broader process validation toolkit, ensuring multiple parameters are in spec.
What is High-Temperature Sensor Calibration and Why It’s Critical
At its core, high temperature sensor calibration verifies that your sensor’s reported value matches the true temperature. It’s a quality check for your most critical process variable. You establish a relationship between the sensor’s signal (millivolts for a thermocouple, resistance for an RTD) and the actual temperature. This process confirms your temperature accuracy.
Why is this non-negotiable? First, sensors drift. Exposure to extreme heat, thermal cycling, mechanical stress, and chemical exposure all degrade performance over time. Second, regulations and quality standards often mandate it. Producing a calibration certificate with NIST Traceable data is a common requirement in aerospace, pharmaceuticals, and food production. Finally, it’s about process integrity and safety. Knowing the exact temperature prevents spoilage, ensures material properties, and maintains safe operating conditions.

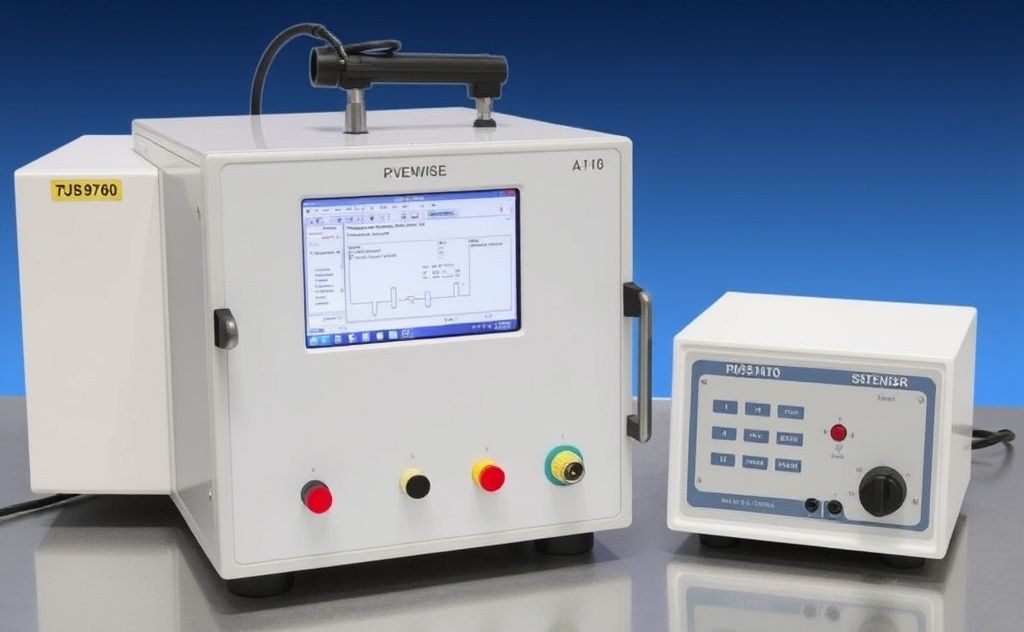

Essential Equipment and Setup for Accurate Calibration
You can’t calibrate a sensor with another unverified sensor. You need a controlled environment and a trusted benchmark. The right setup separates a reliable calibration from a wasted effort.
The Core Tools of the Trade
Your calibration station hinges on two primary pieces of equipment:

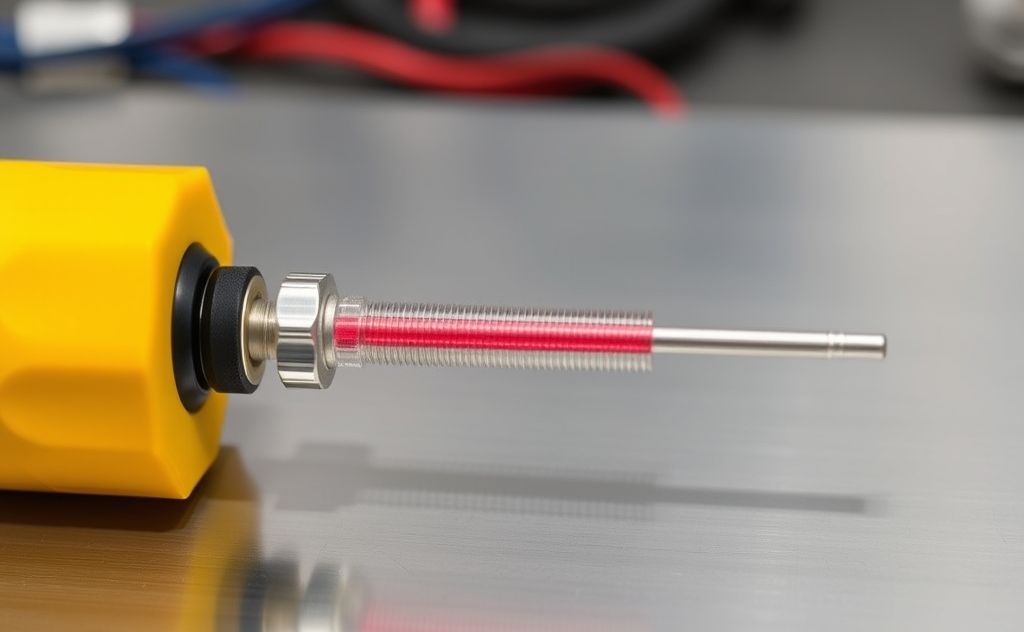

- Reference Standard: This is your “truth teller.” It’s a higher-accuracy sensor, typically a platinum resistance thermometer (PRT) or a specialized thermocouple, housed in a protective sheath. Its calibration must be NIST Traceable.
- Calibration Bath/Furnace: This device provides a stable, uniform temperature field. For high temperatures, a dry-block calibrator or a tube furnace is standard. A calibration bath furnace offers excellent uniformity for liquid baths at lower high-temp ranges, while dedicated high-temp furnaces are needed for extremes.
You’ll also need a high-precision readout device to measure the outputs from both your test sensor and the reference standard simultaneously. Don’t forget an Ice Point Reference for thermocouplesit’s a simple, fundamental way to establish a 0C reference junction, crucial for accurate thermocouple calibration procedure.
Step-by-Step Calibration Procedure for Common Sensor Types
While the specifics vary, the philosophy is consistent: compare, record, adjust. Let’s break down the approach for the two most common high-temperature sensors.
Thermocouple Calibration
Thermocouples generate a small voltage based on temperature. Calibration maps this voltage to a temperature value. Heres a foundational thermocouple calibration method.
- Preparation: Connect both the test thermocouple and the reference standard to the readout. Ensure the reference uses an Ice Point Reference or an equivalent electronic reference junction compensator.
- Stabilization: Insert the sensors into the preheated calibration furnace at the first test point (e.g., 500C). Allow ample time for the entire system to reach thermal equilibrium. This can take longer than you think.
- Measurement: Once stable, record the temperature readings from both the reference standard and the unit under test. This gives you one data pair.
- Point Testing: Repeat steps 2 and 3 at multiple temperature points across the sensor’s range (e.g., 200C, 500C, 800C). A minimum of three points is standard, but five provides a better curve.
- Analysis: Compare the differences. The results will show the sensor’s error at each point, which can be used to create an offset correction in your control system.
For a detailed step by step RTD calibration procedure pdf, many metrology institutes and equipment manufacturers provide excellent free resources.
RTD Calibration
RTDs (Resistance Temperature Detectors) change resistance predictably with temperature. The process is similar but focuses on resistance measurement.
- Initial Check: Perform a room temperature measurement and an insulation resistance check to rule out sensor damage or short circuits.
- Comparative Calibration: Co-locate the RTD and the reference standard in the calibration furnace. Using a precision resistance bridge or multimeter, measure the resistance of the RTD at each stabilized temperature point.
- Data Fitting: The measured resistances are compared to the expected values from the RTD’s standard curve (like ITS-90). The deviations determine the correction factors.
Whether you’re figuring out how to calibrate a thermocouple in a furnace or an RTD, the principle of comparison against a superior standard remains king.
Troubleshooting Common Calibration Errors and Issues
Even with perfect equipment, things go wrong. Recognizing common pitfalls saves time and improves your high temp sensor verification reliability.
- Poor Thermal Contact: If the test sensor and reference aren’t experiencing the same temperature, your data is garbage. Ensure they are tightly bundled or inserted into identical depths in a thermal block.
- Stratification in Furnaces: Temperature zones exist. Use a furnace with a uniform hot zone and always place sensors in the center. This is a key part of your sensor accuracy check.
- Electrical Noise: Especially for low-voltage thermocouples, stray electrical signals can interfere. Use shielded cables, keep signal wires away from power lines, and ensure all connections are clean and tight.
- Drifted Reference: Your reference standard is only as good as its last calibration. If your results show a sudden, uniform shift across all test sensors, suspect the reference. Its calibration uncertainty directly impacts yours.
Environmental factors like ambient temperature and humidity can also affect electronic readouts, though this is less critical for the high-temp process itself.
Maintaining Compliance: Standards, Documentation, and Calibration Intervals
Industrial sensor calibration isn’t a one-and-done task. It’s a program. Consistency and documentation are what make it professionally defensible.
Following Standards and Best Practices
Adhering to recognized standards like ASTM E220, ISO/IEC 17025, or manufacturer guidelines ensures your methods are sound. It formalizes everything from equipment handling to the calculation of calibration uncertainty. For a definitive look at foundational practices, the NIST offers an excellent authority guide on the subject.
The Critical Calibration Certificate
This document is your proof. A proper calibration certificate should include:
- Identification of the calibrated sensor and the standard used.
- The “as found” and “as left” data (if adjusted).
- The measured values, the reference values, and the calculated errors.
- A statement of the expanded measurement calibration uncertainty.
- Clear statement of NIST Traceable calibration.
How Often Should High Temperature Sensors Be Calibrated?
This is the million-dollar question. There’s no single answer. The interval depends on:
| Factor | Influence on Interval |
| Sensor Type & Quality | Stable PRTs may last a year; basic thermocouples in harsh conditions may need quarterly checks. |
| Process Criticality | A safety-critical or product-quality parameter demands more frequent calibration. |
| Historical Performance | If a sensor shows minimal drift over several cycles, you can extend its interval. |
| Manufacturer Recommendation | Always consult the sensor’s data sheet for a baseline. |
Start with a conservative schedule (e.g., every 6 months) and adjust based on the historical drift data you collect. That’s the smart way to determine how often should high temperature sensors be calibrated for your specific application.
Calibrating high-temperature sensors is a blend of meticulous science and practical know-how. It starts with understanding the “why”the non-negotiable need for truth in measurement. It’s executed with the right tools: a trusted reference, a stable heat source, and a precise readout. You follow a disciplined, stepwise procedure, whether for a rugged thermocouple or a precise RTD. You learn to spot and solve common issues like thermal gradients and noise. Most importantly, you embed it into a system. You document everything, adhere to standards, and establish intelligent intervals based on data, not just a calendar. This systematic approach transforms temperature measurement from an assumption into a reliable, documented fact. Thats how you ensure quality, safety, and control where it matters most.
