How Underwater Temperature Sensors Work & Are Used
Joye
Updated October 6, 2026 11 min read
Quick answer
Underwater temperature sensors turn a small change in electrical resistance or voltage into a water temperature reading, then protect that sensing element from pressure, corrosion, and fouling. An underwater temperature sensor is a sensor built to measure water temperature while surviving the pressure and chemistry of lakes, pools, rivers, or the open ocean.
A good sensor does two jobs at once: it measures temperature accurately and stays accurate after days, months, or years underwater. The hard part is less the sensing element than the housing, cable, calibration plan, and the way the data gets back to you.
Deep water changes the rules fast. Pressure rises about 1 atmosphere every 10 meters, saltwater attacks metal, and biofouling can slow the reading or bias it by insulating the probe.
How Underwater Temperature Sensors Work
An underwater temperature sensor works by detecting how water changes an electrical property, then converting that change into a temperature reading. The sensor doesn’t measure temperature directly: its thermistor or RTD changes resistance, while a thermocouple produces a small voltage that the electronics interpret. That is also how temperature sensors work in homes; a thermostat or appliance controller reads the electrical signal from its sensing element, and the displayed or logged temperature comes from that converted signal. For a broader explanation of how a temperature sensor measures temperature, see how a temperature sensor measures temperature.
This sensor measures temperature changes in water.
A thermistor uses a temperature-sensitive material whose resistance changes sharply as it warms or cools, which gives it strong sensitivity over a limited range. An RTD uses a metal element with a more predictable resistance change, so the instrument can track gradual changes steadily. A thermocouple joins two different metals and reads the tiny voltage created by their temperature difference; it suits rugged, broad-temperature work, though the measuring circuit must account for the reference temperature.
In short
The probe senses resistance or voltage, the electronics apply a conversion, and a data logger or display reports the result as water temperature. Water transfers heat faster than air, so an immersed probe usually responds quickly, but powered electronics can warm a small probe enough to bias the reading.
Worked example
Suppose a small probe and its electronics dissipate 0.1 watt in still water, and the probe assembly has an assumed thermal resistance of 5°C per watt. The local temperature rise would be 0.1 × 5 = 0.5°C, so water at 10°C could make the sensor report about 10.5°C until the heat spreads away. Lower excitation power, better water flow around the tip, or a larger sensing element reduces that self-heating error.
Power in probe0.1 W
Assumed thermal resistance5°C/W
Possible local rise0.5°C
Read the signal, not the label
A sensor’s output is only useful after the instrument applies the right resistance-to-temperature or voltage-to-temperature conversion. Cable resistance, electrical noise, and the probe’s own heating can affect that signal, especially in a small, slow-moving body of water.
Which Sensor Type Fits The Job
The main types of temperature sensors are thermistors, RTDs, and thermocouples; choose among them by weighing sensitivity, long-term stability, temperature range, and the water around the probe. For a shallow pond or aquaculture tank, sensitivity and gentle low-power operation often matter most; deep-sea instruments give greater weight to stability, pressure-rated construction, and reliable readings over long deployments.
Choose the right sensor type for accurate readings.
Sensor type
Sensitivity
Stability
Range
Typical underwater use
Thermistor
High over a focused range
Good, but material and electronics matter
Limited compared with a thermocouple
Ponds, pools, aquaculture tanks, and compact monitors where small changes matter
RTD
Moderate and predictable
Excellent for repeatable long-term readings
Broad practical range
CTD instruments, research loggers, and deployments where drift must stay low
Thermocouple
Lower voltage signal; good over broad changes
Rugged, with reference compensation required
Very broad
Rugged industrial work, hot or cold sites, and jobs where durability matters most
These are practical tradeoffs; the housing, cable, electronics, and deployment depth also affect performance.
Pick for the water and the mission
Use a thermistor when a small temperature change is the main signal and the environment is moderate. Choose an RTD for dependable temperature data over a long deployment. Choose a thermocouple for rugged, wide-range work, then allow for its small signal and reference-temperature requirements; the fanciest probe is still a poor fit if the instrument cannot read it cleanly.
Temperature sensor data from a shallow pond, an aquaculture tank, and a deep-sea instrument may look similar on a screen, but the hardware tradeoffs are very different: low cost and sensitivity suit the first two, while pressure resistance, corrosion protection, and stable low-power measurement dominate the third.
When A Replacement Sensor Makes Sense
Most underwater temperature projects need a sensor matched to their pressure, wiring and data system. For a shallow-water pool or spa setup with a failed Hayward-compatible sensor, product 1 is a practical replacement rather than a general-
Pool sensor fix

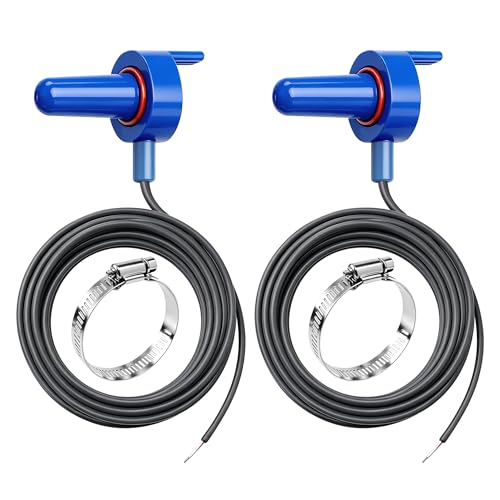

Wholesale Sensors Pool Temperature Sensor
Product 1 is a direct replacement for the Hayward GLX-PC-12-KIT and works with ProLogic, AquaLogic, AquaPlus and Goldline control systems. Its sealed housing is built for wet outdoor conditions, making it useful when inaccurate readings or heater-control errors trace back to the sensor.
To fix temperature sensor problems, first check the connector, cable, housing, and sensing tip for water intrusion, corrosion, or fouling; then compare the reading with a trusted reference and recalibrate or replace the sensor if it still drifts. Calibration means checking the sensor against a known temperature under the conditions where it will work. An IR temperature sensor needs calibration against a known surface temperature with the same viewing distance, angle, and water-surface conditions; it doesn’t directly measure the temperature several inches below the surface.
A sealed housing keeps water away from the electronics, while a titanium housing adds strong corrosion resistance for salt water and long deployments. Special coatings can protect other metals, but no coating makes an ordinary sensor suitable for every depth. Rigid housings resist outside pressure with a strong enclosure; pressure-balanced housings use oil or another fluid so pressure acts more evenly on the electronics.
Depth Is A Design Limit
Only deep-sea-rated sensors can survive pressures at thousands of meters. A lake sensor, pool probe, or ordinary sealed instrument may fail long before that, even if its case looks sturdy.
Biofouling is the growth of algae, barnacles, and other organisms on the sensing tip. Copper-based anti-foul coatings, mechanical wipers, and a scheduled cleaning interval reduce the insulating layer that makes the sensor respond slowly. Corrosion and fouling usually cause drift before total failure, so a gradually implausible reading deserves attention.
Myth
A sealed temperature sensor needs no maintenance.
Fact
A seal protects the electronics, not the exposed sensing surface. Check the housing and connector, remove growth gently, and compare readings with a reference during scheduled service.
How Data Gets Back To You
Underwater temperature data reaches you through a cable, a recovered data logger, or an acoustic modem; wireless radio that works through air generally doesn’t carry far through water. A cable can send live readings from a buoy, ROV, or moored instrument, while an AUV, glider, or profiling float often stores measurements and transmits selected data later.
Connection
Best fit
Trade-off
Wired link
ROV, buoy, or fixed station
Live data, but the cable adds drag and can snag
Data logger
AUV, glider, or profiling float
Large record after recovery, with no live view
Acoustic modem
Untethered instrument
About 3 km range and roughly 7 Kbps, usually depth-limited around 120–200 m for the modem hardware
Real-time transmission is useful, but many deployments still log the full record for later recovery.
A CTD package measures conductivity, temperature, and depth together, helping researchers relate temperature to salinity and pressure; these small probes are often lowered from a ship on a rosette. A pressure sensor supplies depth, while an ADCP or other instrument can add current data. NOAA’s explanation of CTD instruments covers how those measurements work as a package.
Home Thermostats Work Differently
In a home, the temperature sensor reports room temperature to the thermostat, which controls heating. A temperature override changes the control setpoint; it doesn’t alter the sensor’s measurement. Underwater systems usually prioritize timestamped temperature data, storage, and recovery over a simple heat-on or heat-off command.
How To Keep Readings Accurate
You can check an underwater temperature sensor without a PIC microcontroller by using a multimeter and a known-good thermometer. A thermistor or RTD should show a stable resistance that changes as the water warms; a thermocouple should produce a small changing voltage. A sensor with its own powered output still needs the correct supply, but the same-water comparison can reveal whether the reading is sensible.
1
Inspect before replacing
Physical shock, cable damage, loose connectors, and fouling cause most ugly readings before the electronics fail. Look for a cracked housing, bent sensing tip, green corrosion, crushed cable, or growth on the probe. Clean only as the manufacturer permits; replace a damaged sealed probe rather than opening it underwater.
2
Install for a fair reading
Keep the sensing tip fully immersed, away from a hot or cold wall, and secure the cable with strain relief so current or waves cannot pull on the housing. Record the water depth, installation date, and nearby conditions, then allow the sensor to reach the water’s temperature before judging its output.
3
Run a field check
Put the sensor and a known-good thermometer in the same gently stirred bath, with neither touching the container. Wait for both readings to settle. A steady difference suggests an offset or calibration problem; a slow response points toward fouling, water inside the housing, or a damaged sensing tip.
Worked Example
A reference thermometer settles at 58°F while the underwater sensor settles at 61°F in the same stirred bath. Repeat the check with clean probes and swapped positions. If the sensor remains 3°F high, record that offset and arrange calibration or replacement rather than quietly correcting every later reading.
Reference58°F
Sensor61°F
Observed offset+3°F
Long deployments need calibration against a traceable standard, meaning a reference with documented calibration back to recognized standards. Recheck at planned intervals, or compare recovered data with historical readings and nearby instruments; drift can hide inside an otherwise tidy data file.
Keep a service log
Write down the reference used, water temperature, sensor reading, depth, cleaning date, and any cable or housing damage. That record separates sensor drift from a real change in the water.
Next Steps
Identify the water depth and pressure the housing must withstand.
Choose the sensor type that fits the range, sensitivity, and data system.
Check the housing material, seals, cable, and corrosion resistance.
Plan calibration against a traceable standard and schedule rechecks.
Set cleaning intervals based on fouling, season, and deployment site.
Questions People Ask
How exactly do underwater temperature sensors work internally?
Internally, the sensing element changes resistance or voltage as its temperature changes. Electronics measure that change, apply calibration data, and convert it into a temperature value; the housing keeps pressure and water chemistry away from the element. A slow response can occur when a thick protective sheath adds thermal mass.
What types of temperature sensors exist for underwater use?
Common choices include thermistors, RTDs, and thermocouples. Thermistors offer strong sensitivity over a narrower range, RTDs favor stable and repeatable readings, and thermocouples suit wider temperature ranges but produce a smaller voltage that needs careful signal handling. The water chemistry, depth, response time, and required accuracy decide the practical choice.
How do underwater temperature sensors handle biofouling?
Biofouling is reduced with smooth housings, anti-foul coatings, physical guards, and, on some instruments, mechanical wipers. Keeping the sensing tip exposed enough for fast response while protecting it from growth is the design compromise. Regular inspection still matters because a film of algae or shell growth can insulate the tip and make readings lag.
How is sensor accuracy maintained over long deployments?
Long deployments need calibration before installation, a check against a trusted reference after recovery, and a record of any drift. Autonomous platforms such as gliders, profiling floats, and moored profilers can also be compared with nearby historical or neighboring instrument data. A clean time series makes a gradual sensor offset easier to spot than a single end-of-deployment check.
How do sensors communicate data to surface systems?
Surface systems receive readings through a cabled connection, a recovered data logger, or an acoustic modem. Cables can provide power and near-immediate data, while loggers conserve energy by storing measurements until recovery. Acoustic links work underwater but trade speed and range for the ability to send data without a physical cable.
What are the main challenges in deep-sea temperature sensing?
Deep-sea instruments must withstand high pressure, corrosion, fouling, and long periods without hands-on maintenance. Pressure-resistant housings and seals protect the electronics, while titanium or specialized protective coatings help resist seawater attack. Temperature changes can also be small, so sensor drift and heat from nearby electronics deserve attention.
How do underwater temperature sensors integrate with other sensors?
A CTD package combines temperature with conductivity and pressure so a system can calculate salinity and locate water layers by depth. An AUV, ROV, or fixed observatory may also pair temperature data with dissolved-gas, acidity, turbidity, or current measurements. Shared timestamps and a common depth reference let software compare readings from instruments that sample at different rates.
