Insulation reduces heater energy consumption by minimizing heat loss, allowing homes to maintain temperature with less energy, thus lowering heating costs.
Insulation acts as a thermal barrier that significantly reduces heater workload. By slowing heat transfer through walls, attics and floors, proper insulation keeps warm air inside during winter while preventing cool air from escaping. This directly lowers energy consumption and heating costs.
The Science Behind Insulation’s Energy Savings
Heat naturally flows from warm areas to cooler spaces through three mechanisms:
- Conduction: Heat transfer through solid materials (like walls)
- Convection: Heat movement through air currents
- Radiation: Heat traveling in straight lines through space
Quality insulation materials combat all three heat transfer methods. Fiberglass batt insulation, for example, traps air pockets that resist conductive heat flow. Reflective barriers like radiant foil stop radiant heat transfer. Spray foam creates an airtight seal preventing convective losses.
R-Value: The Key Metric
Insulation effectiveness is measured in R-values – higher numbers mean better performance. The U.S. Department of Energy recommends:
| Climate Zone | Attic R-Value | Wall R-Value |
|---|---|---|
| Hot (Zone 1-2) | R30-R38 | R13-R15 |
| Mixed (Zone 3-4) | R38-R49 | R13-R21 |
| Cold (Zone 5-8) | R49-R60 | R21-R30 |
Where Insulation Delivers Maximum Heating Savings
Attic Insulation
Heat rises, making attics the #1 source of energy loss. Adding attic insulation can reduce heating costs by 10-50%. Blown-in cellulose or fiberglass works best for existing homes.
Wall Insulation
Walls account for 20-30% of heat loss. For older homes, consider injection foam insulation that can be added without removing drywall.
Basement/Crawlspace
Uninsulated foundations lead to cold floors and higher heating bills. Rigid foam boards work well for below-grade applications.
Insulation Types Compared

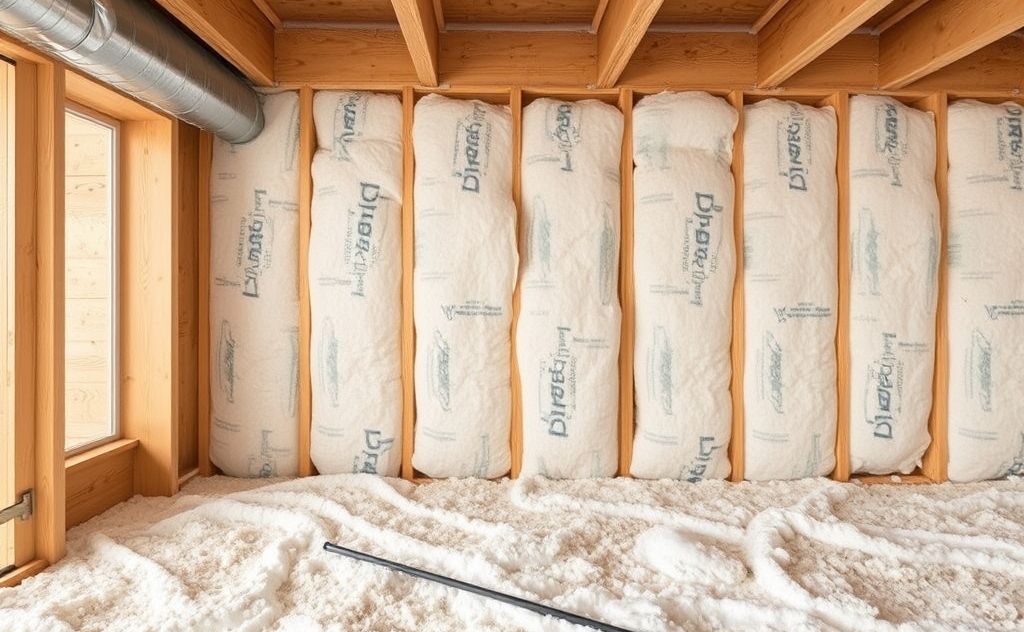

Fiberglass Batts
Cost-effective and easy to install between studs. Provides R-3.1 to R-4.3 per inch.
Cellulose
Made from recycled paper, offers excellent air sealing. R-3.2 to R-3.8 per inch.
Spray Foam
Expands to fill gaps completely. High R-value (R-6 to R-7 per inch) but more expensive.
Radiant Barriers
Reflective foil that blocks radiant heat. Works best in hot climates when combined with other insulation.
Additional Energy-Saving Strategies
Combine insulation with these measures for maximum heating efficiency:
- Air sealing around windows/doors
- Programmable thermostats
- Energy-efficient windows
- Proper HVAC maintenance
The right water heater settings can provide additional savings when paired with good insulation.
Financial Incentives
Federal tax credits cover 30% of insulation costs (up to $1,200 annually). Many utilities also offer rebates. According to ENERGY STAR, these incentives can cut payback periods to just 2-3 years.
For optimal results, consult with an insulation professional who can assess your home’s specific needs and recommend the most cost-effective solutions.
