How HVAC Systems Use Heat Pumps for Efficient Heating & Cooling

HVAC systems utilize heat pumps to transfer heat between indoors and outdoors, providing efficient heating in winter and cooling in summer by reversing the flow of refrigerant.

Heat pumps have revolutionized modern HVAC systems by providing both heating and cooling with unmatched energy efficiency. Unlike traditional furnaces or air conditioners that generate heat or cold air, heat pumps simply transfer existing heat from one place to another. This fundamental difference makes them 2-3 times more efficient than conventional systems.

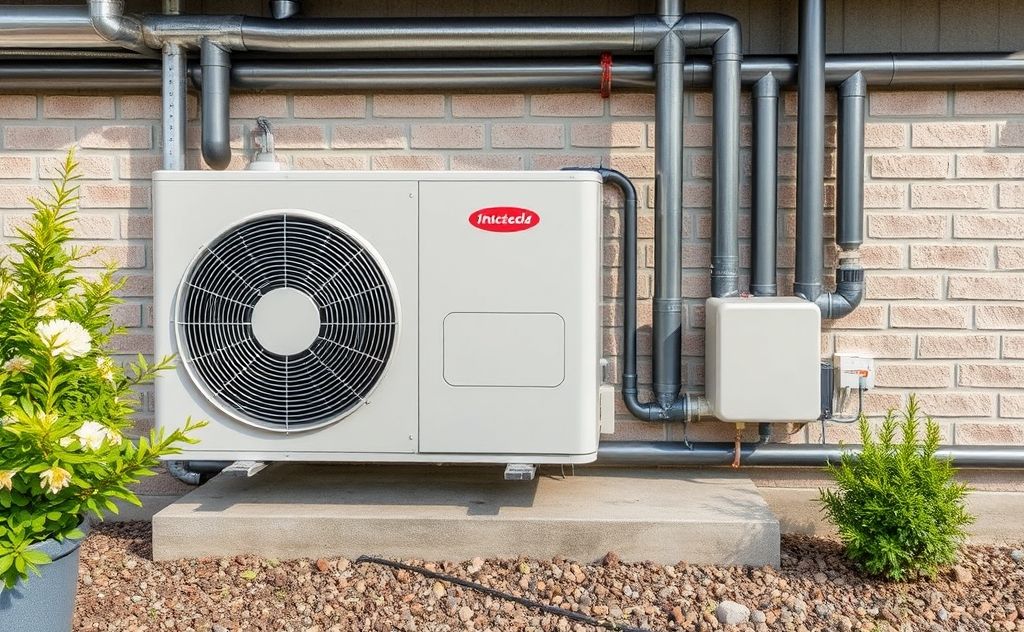

Heat pump in HVAC system for efficient climate control

How Heat Pumps Work in HVAC Systems

Heat pumps operate on the same basic principle as refrigerators, using refrigerant cycles to move heat rather than create it. The magic happens through four key components:

  • Evaporator coil (absorbs heat)
  • Compressor (pressurizes refrigerant)
  • Condenser coil (releases heat)
  • Expansion valve (regulates refrigerant flow)

Heating Mode Operation

In winter, the system extracts heat from outdoor air (even in cold temperatures) and transfers it indoors. The refrigerant absorbs ambient heat at the outdoor unit, gets compressed to increase temperature, then releases warmth through indoor coils.

Cooling Mode Operation

During summer, the process reverses. The system removes heat from indoor air and releases it outside, functioning like a traditional air conditioner but with higher efficiency.

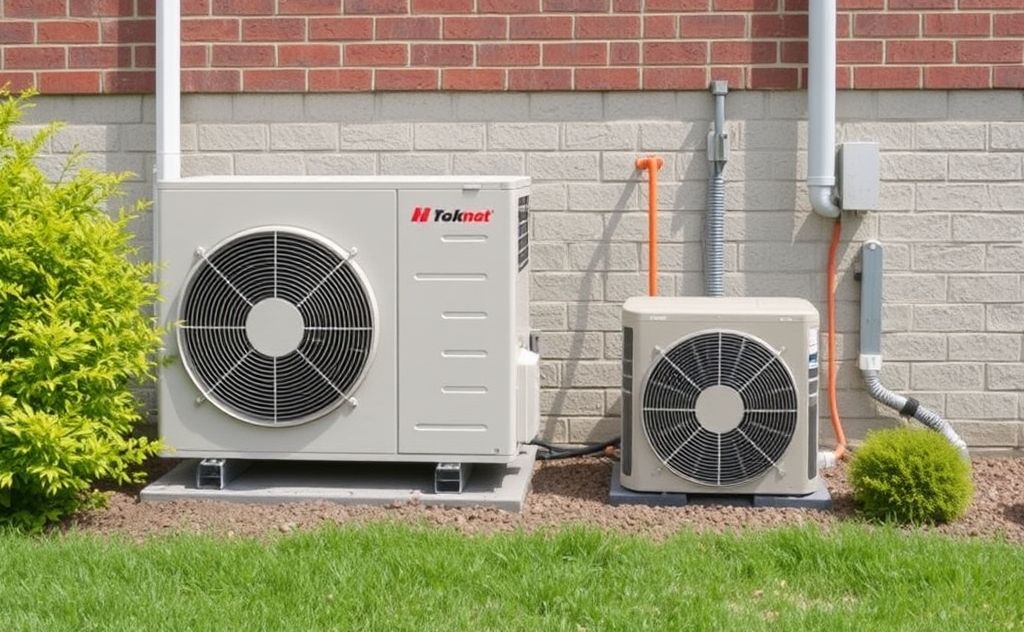

Types of Heat Pump Systems and HVAC Functionality

Types of Heat Pump Systems

Air-Source Heat Pumps

The most common type transfers heat between indoor and outdoor air. Modern models like Mitsubishi’s wall-mounted units work efficiently even below freezing temperatures.

Advantages:

  • Lower installation cost than geothermal
  • Can reduce heating costs by 50% compared to electric resistance
  • Provide both heating and cooling

Geothermal (Ground-Source) Heat Pumps

These systems exchange heat with the ground through buried pipes. While more expensive to install, they offer superior efficiency with 300-600% performance (COP of 3-6).

READ MORE  Upgrade Your HVAC System With Advanced Heat Pumps

Key Benefits:

  • Consistent underground temperatures improve efficiency
  • Can last 50+ years for ground loops
  • Quieter operation with no outdoor unit

Ductless Mini-Split Systems

Ideal for homes without ductwork, these systems like Duraheat models allow zoned temperature control with individual air handlers for different rooms.

Advanced Heat Pump Technologies

Variable-Speed Compressors

Modern systems use inverter technology to adjust capacity precisely to heating/cooling needs, eliminating the energy waste of constant on/off cycling.

Cold Climate Heat Pumps

New models from manufacturers like Mitsubishi and Fujitsu maintain full heating capacity down to -15°F using advanced vapor injection technology.

Hybrid Systems

Combining heat pumps with gas furnaces creates optimal efficiency – the heat pump handles moderate temperatures while the furnace assists during extreme cold.

Energy Efficiency Considerations

System Type Average COP Seasonal Efficiency
Standard Air-Source 2.5-3.5 HSPF 8-10
Cold Climate Air-Source 2.0-3.0 at 5°F HSPF 10-13
Geothermal 3.5-5.0 No defrost losses

According to U.S. Department of Energy, ENERGY STAR certified heat pumps can save homeowners about $500 annually compared to standard models.

Installation Best Practices

Proper installation is crucial for optimal performance:

  1. Right-sizing equipment based on Manual J load calculations
  2. Ensuring proper refrigerant charge
  3. Optimizing airflow through ducts or mini-split placement
  4. Integrating with complementary systems like smart thermostats

Maintenance Requirements

To maintain peak efficiency:

  • Clean or replace filters monthly
  • Keep outdoor units clear of debris
  • Schedule professional tune-ups annually
  • Monitor refrigerant levels
  • Check electrical components

As noted by energy experts, well-maintained heat pumps can last 15+ years while maintaining over 90% of their original efficiency.

Future of Heat Pump Technology

Emerging innovations include:

  • CO2 refrigerant systems for ultra-low temperature operation
  • Integrated heat pump water heaters
  • AI-optimized performance algorithms
  • Improved cold climate performance
