How Gas Water Heaters Work: A Complete Guide

Gas water heaters work by igniting natural gas or propane to heat water in a tank, utilizing a burner and a thermostat to maintain desired temperatures.

Gas water heaters provide hot water for showers, dishwashing, and laundry by burning natural gas or propane to heat stored water. Understanding how they work helps homeowners maintain them properly and troubleshoot issues.

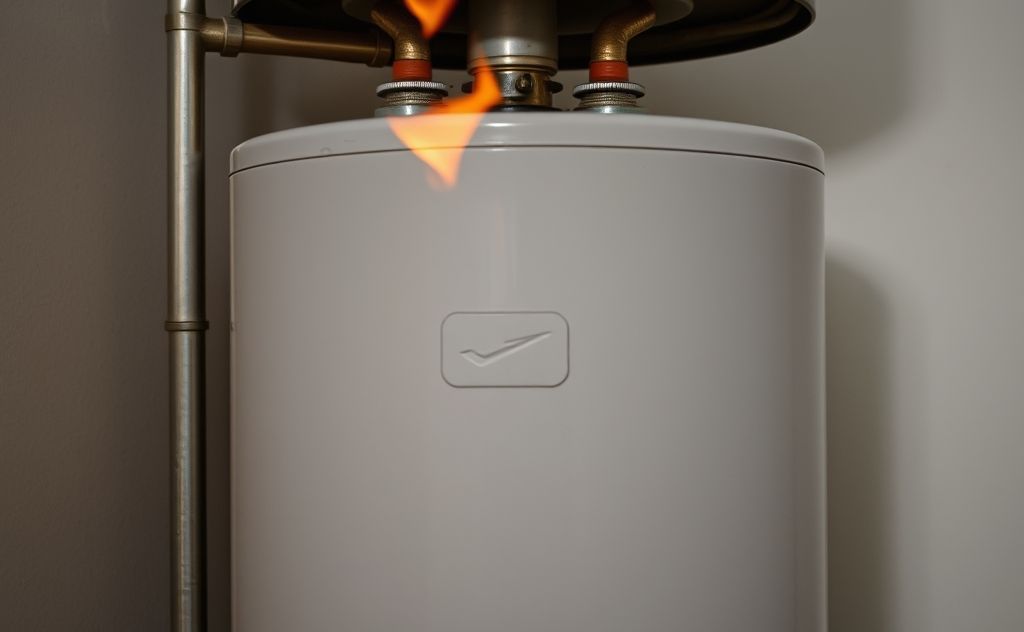

Gas water heater with flames and pipes in action

Gas Water Heater Components

Gas water heaters contain several key components that work together to heat and deliver hot water:

1. Storage Tank

The tank holds 30-80 gallons of water, insulated with polyurethane foam to retain heat. Interior porcelain enamel coating prevents corrosion.

2. Dip Tube

Cold water enters through this tube at the top, directing it to the tank’s bottom for heating.

3. Burner Assembly

Located beneath the tank, this gas burner heats the water when activated by the thermostat.

4. Flue

A vertical pipe running through the tank center vents combustion gases outside.

5. Anode Rod

This sacrificial metal rod attracts corrosive elements to protect the tank lining. Replacement anode rods extend tank life.

6. Temperature/Pressure Relief Valve

A safety device that releases water if pressure or temperature becomes excessive.

Gas water heater operation process explained

How Gas Water Heaters Operate

Gas water heaters follow this heating cycle:

  1. Cold water enters through the dip tube to the tank bottom
  2. The thermostat detects water temperature
  3. If below set point, it activates the gas control valve
  4. Gas flows to the burner and ignites via pilot light or electronic ignition
  5. Heat rises through the flue, warming surrounding water
  6. Hot water rises to the tank top, ready for use
  7. Exhaust gases vent outside through the flue
READ MORE  Top Picks for Vented Gas Wall Heaters That Will Transform Your Space

Venting Systems

Proper venting is critical for safety. There are three main types:

Type Description Termination
Atmospheric Vent Uses natural draft Vertical through roof
Power Vent Uses electric fan Vertical or horizontal
Direct Vent Sealed combustion Horizontal through wall

Energy Efficiency Considerations

Newer gas water heaters incorporate several efficiency features:

  • Improved insulation reduces standby heat loss
  • Electronic ignition eliminates standing pilot light
  • Condensing models recover heat from exhaust gases
  • Higher Energy Factor ratings indicate better efficiency

Maintenance Tips

Regular maintenance extends your water heater’s life:

Annual Flushing

Draining sediment prevents buildup that reduces efficiency.

Anode Rod Inspection

Check every 3-5 years and replace when 6″ of core wire is exposed.

Temperature Setting

120°F provides safe water while minimizing energy use.

Vent Inspection

Ensure proper draft and no obstructions in flue pipes.

Troubleshooting Common Issues

No Hot Water

Check gas supply, thermocouple, and pilot light if equipped.

Inadequate Hot Water

May indicate undersized unit, broken dip tube, or sediment buildup.

Discolored Water

Often signals corroded anode rod or tank deterioration.

Strange Noises

Popping sounds typically mean sediment needs flushing.

For complex repairs like igniter replacement, consult a professional plumber.

Safety Features

Modern gas water heaters include multiple protections:

  • Flammable vapor ignition resistant (FVIR) design
  • Earthquake straps in seismic zones
  • Automatic gas shutoff if flame is extinguished
  • Thermal cutoff to prevent overheating

When to Replace Your Water Heater

Consider replacement if your unit:

  • Is over 10 years old
  • Requires frequent repairs
  • Leaks from the tank
  • Fails to provide enough hot water
  • Shows significant rust or corrosion
READ MORE  Find the Hidden Gems Among 12000 BTU Gas Heaters

Newer high-efficiency models can reduce energy costs by 20-30% compared to older units.
