Does the Main Water Line Connect to Water Heater First? The Branch vs. Series Truth

You just bought a house, or maybe you’re mid-remodel, and you’re staring at the copper pipes in the basement. The main water line comes through the foundation, and the first thing it runs into is the water heater. So you assume the whole house gets its water through the heater. That seems logical. But it’s wrong.

This article walks you through the actual plumbing layout, why the water heater is almost always a parallel branch off the main line, and what happens when someone pipes it in series. You’ll learn how to identify your cold inlet and hot outlet, why pipe diameter matters, and how to fix a few common mistakes. By the end, you’ll know exactly what to tell a plumber or what to look for when inspecting your own pipes.

The Short Answer: It’s a Branch, Not a Gateway

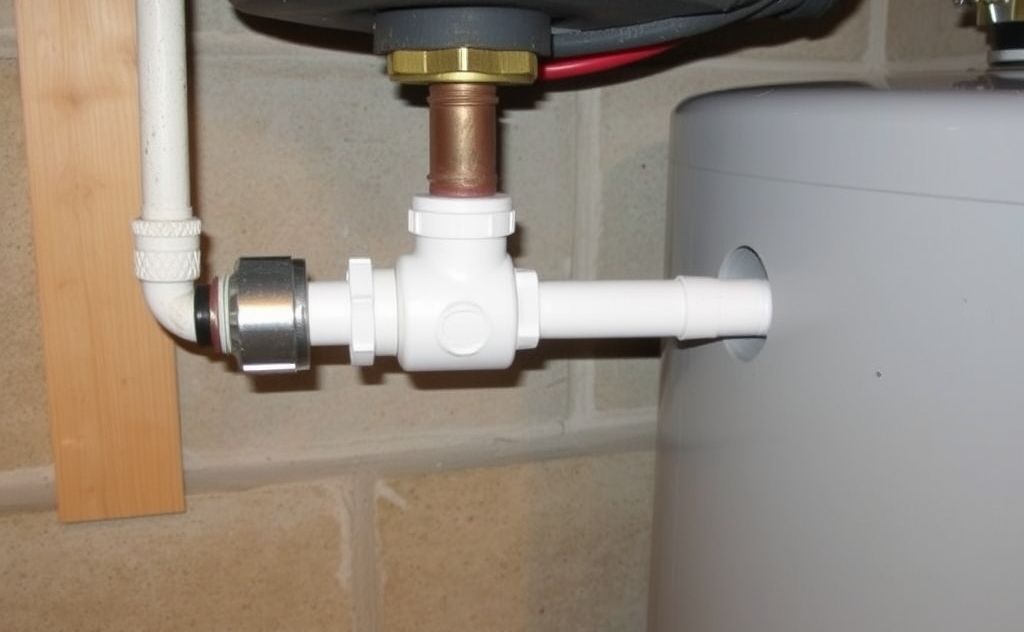

The main water line does not connect to the water heater first. It runs to a tee fitting, and one branch goes to the water heater’s cold water inlet. The other branch continues on to supply the rest of the house — bathroom sinks, toilets, the kitchen, outdoor spigots. The heater is one of several destinations, not a checkpoint.

Think of the main line like a highway. The water heater is an off-ramp. Traffic that doesn’t take that ramp keeps going. If the heater were the only road, every fixture in the house would be stuck behind it.

This design exists for a simple reason: pressure. The main line carries water at whatever pressure your municipal supply or well pump delivers, typically 40 to 60 psi. If that water had to pass through the heater’s tank and then feed the rest of the house, every cold tap would get hot water first, and the pressure at those taps would drop because the tank’s internal pipes and dip tube add resistance. Nobody wants cold water that runs warm for the first minute.

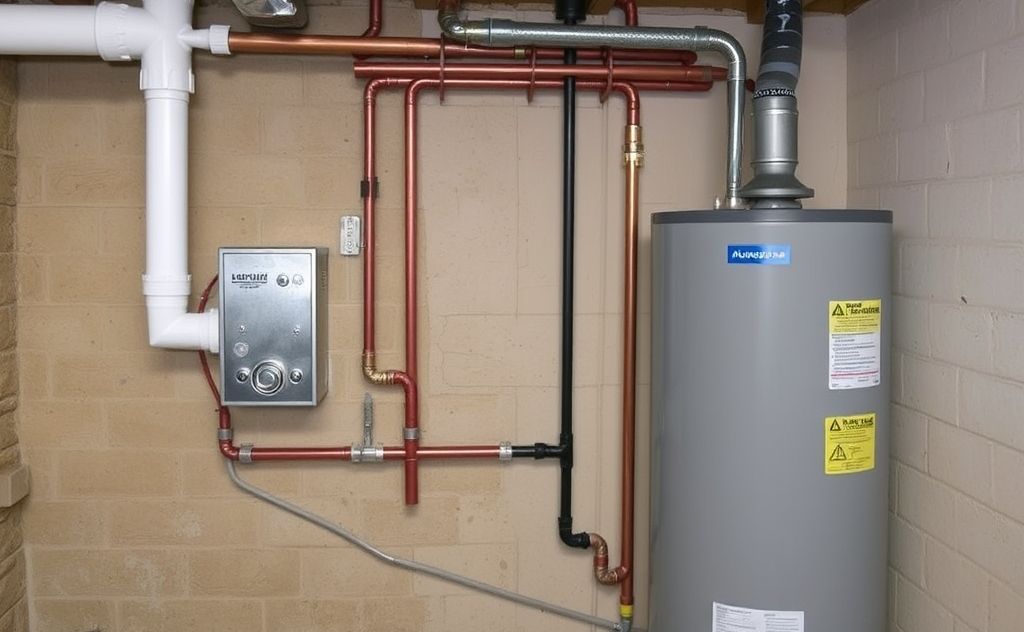

How the Main Water Line Actually Splits (With a Simple Diagram)

Here’s a text-based picture of the layout. Imagine the main line entering your home from the left.

Main line (3/4″) → Tee fitting → Branch A: continues to cold water fixtures
Main line (3/4″) → Tee fitting → Branch B: goes to water heater cold inlet

Branch B has its own shut-off valve, usually a gate or ball valve, right before the heater. That valve lets you isolate the heater for maintenance without killing water to the whole house. After the heater, the hot water outlet pipe runs to the hot side of every fixture. The cold water branch runs separately to the cold side of those same fixtures.

So at any sink, you have two pipes: one hot, one cold. They both ultimately come from the same main line, but they travel different paths. The cold path never touches the heater. The hot path starts at the heater’s outlet.

Why Plumbers Don’t Run the Main Line Through the Heater First

Running the entire supply through the heater first creates a cascade of problems. The most obvious is temperature. Every cold water faucet would deliver warm water because the water would sit in the tank and pick up heat before heading out. That’s a waste of energy and a safety hazard for anyone expecting cold water.

Pressure drops are the second issue. A typical 40-gallon tank has a 3/4-inch inlet and outlet, but the internal dip tube and heat trap fittings create turbulence. Water that flows through the tank loses pressure. If all your fixtures depended on that flow, you’d notice weak showers and slow-filling toilets whenever the heater was working hard.

There’s also a backflow risk. If the main line pressure drops — say, a fire hydrant opens nearby — water from the heater could flow backward into the cold water pipes. That would push hot water into your cold lines and potentially contaminate the supply. Plumbing codes require a check valve or backflow preventer in many jurisdictions specifically to stop this. When the heater is a parallel branch, the risk is much lower because the cold lines stay at higher pressure.

The Only Time a Heater Might Be “First” (Recirculation Loops)

There is one scenario where the heater appears to be first: a hot water recirculation loop. In larger homes, you might have a dedicated return line that runs from the farthest fixture back to the heater. This keeps hot water circulating so you don’t wait 30 seconds for the tap to warm up.

In that setup, the main line still splits at a tee. The heater is not first in the supply order. But the return line connects to the heater’s cold inlet or a dedicated return port, so the heater becomes the center of a loop. Some DIYers mistake this for the heater being the first stop. It isn’t. The cold supply still branches off the main line independently.

Recirculation loops add complexity and cost. They need a small pump, usually 15 to 30 watts, and a check valve to prevent backflow. If you don’t have one, don’t add one just because it sounds nice. The pump adds standby heat loss through the pipes, which can waste more energy than it saves on a short run.

How to Identify Your Cold Water Inlet and Hot Water Outlet

If you’re staring at your water heater right now, here’s how to tell which pipe is which. The cold water inlet is almost always on the right side when you face the unit. It connects to a pipe that has a shut-off valve — a red or blue handle, often a ball valve — and it leads to a dip tube inside the tank. The hot water outlet is on the left, and it usually has no valve because you don’t want to restrict hot flow. It connects to a pipe that runs to your fixtures.

Color helps, but not always. Some installers use red tape or paint on the hot line. Many don’t. The most reliable clue is the valve. The cold side gets a shut-off valve for service. The hot side rarely does. If both pipes have valves, trace them back. The one that leads to the main line’s tee is the cold inlet.

On tankless heaters, the inlet and outlet are marked with labels or colored rings — blue for cold, red for hot. You’ll also see a filter screen on the cold inlet that needs cleaning every few months. If you see a filter, that’s your cold side.

Common Mistakes: Series Piping, Backflow, and Pressure Drops

Some older homes or amateur renovations have the heater plumbed in series. The main line goes into the heater’s cold inlet, and the hot outlet feeds the entire house. That means every fixture gets only hot water, and the cold taps are actually connected to the hot line. It’s a mess.

If you suspect this, turn off the cold water shut-off valve at the heater. Then open a cold faucet. If water still flows, the heater is not in series — you have a proper branch. If nothing comes out, the heater is blocking the supply. That’s a major re-pipe job, not a simple fix.

Another common issue is a missing expansion tank. When water heats, it expands. In a closed system with a check valve or pressure-reducing valve, that expansion has nowhere to go. Pressure builds and can damage the tank or cause the T&P relief valve to leak. An expansion tank, usually a small blue or white tank mounted on the cold line, absorbs that pressure. If you don’t have one and your relief valve drips, that’s likely why.

Backflow can also show up as warm cold water. If a check valve on the cold inlet fails, hot water can migrate backward into the cold lines, especially at night when no one is using water. That’s why you might wake up to a cold tap that runs warm for a few seconds. A plumber can install a spring-loaded check valve to stop it.

Pipe Sizing: Does Your Main Line Starve the Heater?

The main line is typically 3/4-inch copper or PEX. The branch to the water heater is often the same size, or sometimes 1/2-inch. That reduction matters. A 1/2-inch pipe carries roughly half the volume of a 3/4-inch pipe at the same pressure. If your main is 3/4 and the branch to the heater is 1/2, you’ll get a slower fill rate, which means longer recovery time after a big draw.

For a standard 40-gallon tank, a 1/2-inch branch is usually fine. The tank fills slowly anyway, and the dip tube restricts flow. But for a tankless unit that needs 3 to 5 gallons per minute to fire correctly, a 1/2-inch line can cause the heater to cycle on and off or fail to reach temperature. Tankless manufacturers specify a minimum pipe size, often 3/4-inch, and they mean it.

Here’s a quick comparison of what you’ll see in typical installations:

Pipe Size	Flow Rate (GPM at 50 psi)	Best For	Common Issue
1/2-inch	4-6 GPM	Branch to tank heater, small fixtures	Starves tankless units
3/4-inch	8-12 GPM	Main line, tankless heater branch	None, standard
1-inch	14-20 GPM	Long runs, high-demand homes	Overkill for most houses

If you’re replacing a heater and upgrading from tank to tankless, check the existing branch line. If it’s 1/2-inch, you’ll need to run a new 3/4-inch line. That’s a job for a pro unless you’re comfortable with PEX crimping.

FAQ: Cold Water From Hot Tap, Expansion Tanks, and Dielectric Unions

Why is my cold water hot?

That’s a cross-connection. Either the heater is plumbed in series, or a failed check valve on the cold inlet allows hot water to backflow into the cold lines. Turn off the cold shut-off valve and open a cold tap. If water flows, the heater is a branch and the issue is a bad check valve. If nothing flows, you have a series setup that needs re-piping.

Do I need an expansion tank if I have a pressure-reducing valve?

Yes, especially if you have a PRV set below the street pressure. The PRV creates a closed system, so thermal expansion has nowhere to go. Without an expansion tank, the T&P valve will weep or pop. Install a small expansion tank rated for your heater’s gallon capacity.

What’s a dielectric union and why does it matter?

It’s a fitting that connects the steel tank nipple to copper piping. Without it, galvanic corrosion eats the connection over time. If you see green crust or rust at the top of the heater, the dielectric union has failed. Replace it with a new one when you service the heater.

Can I run the main line through the heater to save pipe?

You’ll save a few feet of pipe and create a world of pain. Every cold faucet will deliver warm water, pressure will drop, and you’ll risk backflow. The few dollars in copper aren’t worth it. Plumbers don’t do this for a reason.

How do I know if my main line is 3/4 or 1/2?

Measure the outside diameter with a tape measure. 3/4-inch copper is about 7/8-inch OD. 1/2-inch is about 5/8-inch OD. PEX is marked on the pipe every few feet. If you have a manifold system, the main line is the larger pipe feeding the manifold.

Final Verdict: What to Tell Your Plumber

Now you know the layout. The main water line hits a tee, and the heater hangs off a branch. That’s code, that’s standard, and that’s how it should be in your house.

If you’re planning a remodel or a new heater install, tell your plumber this: “I want a 3/4-inch branch to the heater, a shut-off valve on the cold inlet, a dielectric union on both connections, and an expansion tank if the system is closed.” That sentence covers 90% of the common mistakes.

If you’re troubleshooting an issue, start with the valves. A stuck shut-off valve or a failed check valve causes more problems than pipe sizing. And if you’re still unsure, take a photo of your piping and ask a local pro. A quick look beats a guess.

For more details on how your heater interacts with the rest of the house, check out water pressure effects and thermostat function. And if you’re dealing with a softener, see softener impact.

• The main line branches to the heater; the heater is never a gateway.
• Look for a shut-off valve on the cold inlet — that’s how you identify it.
• Series piping ruins cold water temperature and pressure; avoid it.
• Use 3/4-inch branch lines for tankless heaters, 1/2-inch is often fine for tanks.
• Install an expansion tank if you have a closed system with a PRV.
• Replace failed dielectric unions to stop corrosion.
• When in doubt, call a plumber — a photo of your pipes helps them diagnose fast.
