DIY HVAC Airflow Inspection: Boost Efficiency in 10 Minutes

Perform a DIY inspection for HVAC airflow by checking vents for blockages, measuring temperature differences, and ensuring filters are clean for optimal performance.

Struggling with uneven heating or cooling? Poor HVAC airflow could be wasting energy and making your home uncomfortable. This hands-on guide teaches you professional inspection techniques to diagnose airflow problems without tools.

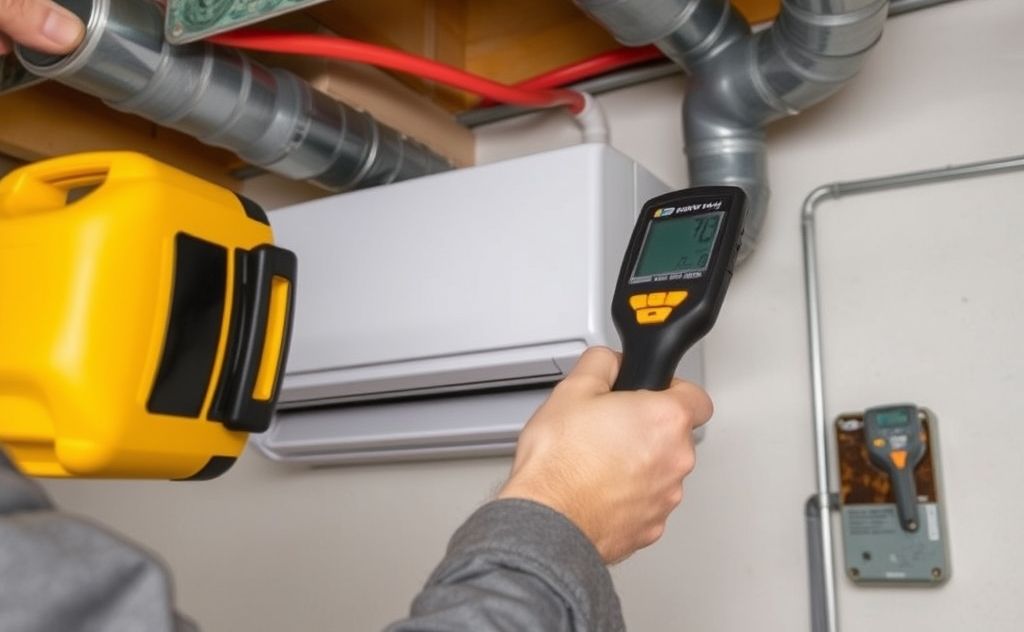

Diy inspection tools for efficient HVAC airflow

The Garbage Bag Airflow Test (Simple DIY Method)

Developed by Canada Mortgage and Housing Corporation, this clever test reveals airflow issues using just a kitchen garbage bag:

What You’ll Need:

  • Small garbage bag (26″ x 36″)
  • Wire coat hanger
  • Masking tape
  • Stopwatch

Step-by-Step Process:

  1. Shape the hanger to keep the bag opening wide
  2. Flatten the bag completely to remove all air
  3. Seal the bag over a supply vent
  4. Time how long it takes to fully inflate

Interpreting Results:

Inflation Time CFM Rating Diagnosis
2 seconds 75 CFM Excellent airflow
15+ seconds <10 CFM Severe blockage

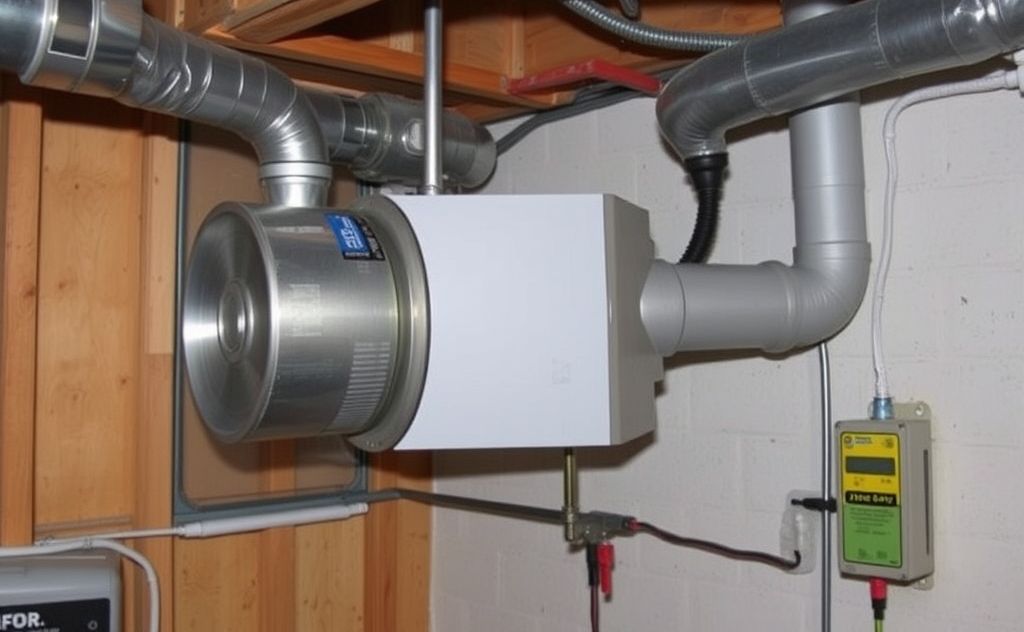

Advanced DIY airflow check for HVAC system

Advanced DIY Airflow Checks

For more thorough inspection, examine these key components:

1. Filter Inspection

Clogged filters cause 85% of airflow problems. Check monthly and replace when dirty. For optimal performance, consider high-efficiency filter materials that balance airflow and filtration.

2. Ductwork Examination

Look for:

  • Visible gaps at joints (lose 20-30% airflow)
  • Crushed or kinked sections
  • Disconnected segments

3. Vent Clearance Check

Ensure all registers are:

  1. Fully open (no closed dampers)
  2. Unblocked by furniture (maintain 12″ clearance)
  3. Free of dust buildup (vacuum quarterly)

When to Call a Professional

While DIY checks help, certain issues require expert attention:

  • Consistent >15 second bag inflation times
  • Ductwork located in inaccessible areas
  • Suspect gas heater combustion issues
  • Electrical component problems
READ MORE  Top HVAC Problems Found During Home Inspections

According to U.S. Department of Energy, professional maintenance can improve efficiency by up to 15%.

Seasonal Maintenance Tips

For year-round performance:

  • Spring: Clean condenser coils (outdoor AC unit)
  • Fall: Inspect heat exchanger for cracks
  • Winter: Check for ice buildup on heat pumps
  • Monthly: Monitor filter condition

The ASHRAE Handbook recommends balancing your system every 3-5 years for optimal airflow distribution.

Airflow Improvement Solutions

For chronic airflow issues, consider:

  • Duct sealing (mastic works better than tape)
  • Adding return air pathways
  • Installing a duct booster fan
  • Upgrading to variable-speed blower

For homes with supplemental heating systems, ensure proper integration with main HVAC airflow.
