Commercial HVAC Duct Design: Key Considerations for Efficiency

Key design considerations for commercial HVAC ducts include airflow efficiency, size, material selection, insulation, and noise control to ensure optimal system performance.

Proper duct design is the backbone of any commercial HVAC system. Well-designed ductwork ensures efficient airflow, temperature control, and indoor air quality while minimizing energy costs. This guide covers essential design considerations for commercial HVAC ducts.

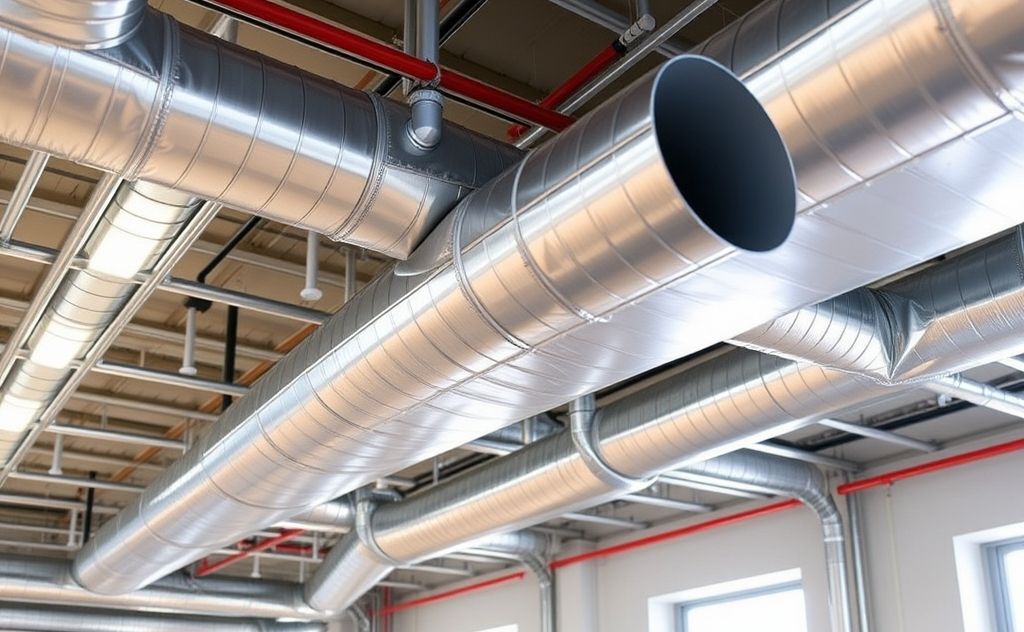

Commercial HVAC duct design essentials and guidelines

Duct Sizing and Layout

Correct duct sizing is critical for system performance. Undersized ducts restrict airflow, while oversized ducts waste energy and reduce velocity.

Key Factors for Sizing:

  • Building square footage
  • Ceiling height
  • Number of vents
  • HVAC unit capacity

The EPA recommends following ASHRAE Standard 62.1 for ventilation requirements when designing duct systems.

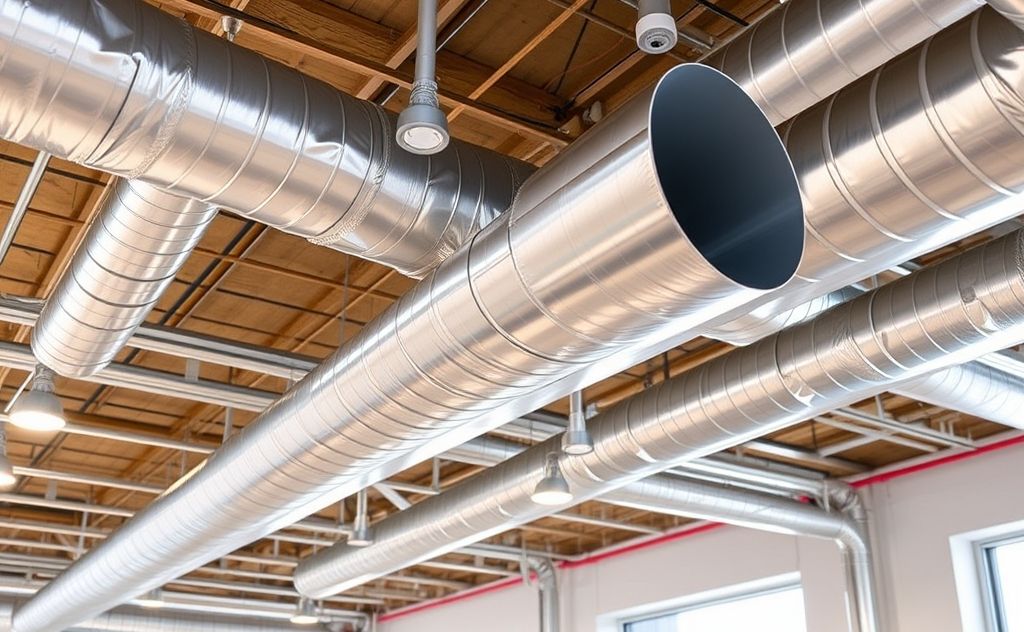

Duct materials for efficient commercial HVAC design

Duct Material Selection

Material choice impacts durability, efficiency, and installation costs:

Material Pros Cons
Galvanized Steel Durable, fire-resistant Heavier, more expensive
Aluminum Lightweight, corrosion-resistant Less rigid
Flexible Duct Easy installation Higher friction loss

For specialized heating applications, consider the best materials for modern heaters.

Airflow Dynamics

Proper airflow design prevents hot/cold spots and maintains consistent temperatures:

Airflow Principles

  • Maintain velocity between 600-900 FPM in main ducts
  • Use gradual bends (45° preferred over 90°)
  • Size branch ducts appropriately for balanced airflow

Insulation Requirements

Insulation prevents energy loss and condensation:

  • Use R-6 or higher insulation for exterior runs
  • Seal all joints with mastic or foil tape
  • Consider vapor barriers in humid climates

Noise Control

Commercial spaces require quiet operation:

Noise Reduction Techniques

  • Use lined ducts or sound attenuators
  • Maintain proper air velocity
  • Install vibration isolators
  • Use radius elbows instead of sharp turns
READ MORE  Flexible HVAC Ducts: Key Pros and Cons You Need to Know

Accessibility and Maintenance

Design for easy inspection and cleaning:

  • Include access doors every 20-30 feet
  • Provide clearance around ductwork
  • Mark all dampers and controls clearly

For maintenance-intensive systems, the right tools make servicing easier.

Energy Efficiency Considerations

Optimize duct design for maximum efficiency:

  • Keep duct runs as short and straight as possible
  • Locate ducts within conditioned spaces when feasible
  • Use aerodynamic fittings
  • Consider pressure-assisted systems for large buildings

Zoning Strategies

Commercial buildings often need multiple zones:

  • Use automatic dampers for zone control
  • Design separate runs for distinct temperature zones
  • Consider VAV (Variable Air Volume) systems

Code Compliance

Ensure designs meet all local and national codes:

  • International Mechanical Code (IMC)
  • Uniform Mechanical Code (UMC)
  • NFPA 90A and 90B
  • Local energy efficiency requirements

Future Expansion

Design with growth in mind:

  • Oversize main ducts when possible
  • Include capped tees for future branches
  • Plan for easy system upgrades
