Solar Water Heater Comparison: Types, Costs & Efficiency

Comparing different types of solar water heaters reveals variations in efficiency, cost, and installation, with flat-plate and evacuated tube models being the most common.

Solar water heaters harness free energy from the sun to provide hot water for homes and businesses. With rising energy costs, these systems offer significant savings while reducing environmental impact. This guide compares the main types of solar water heaters to help you choose the best option.

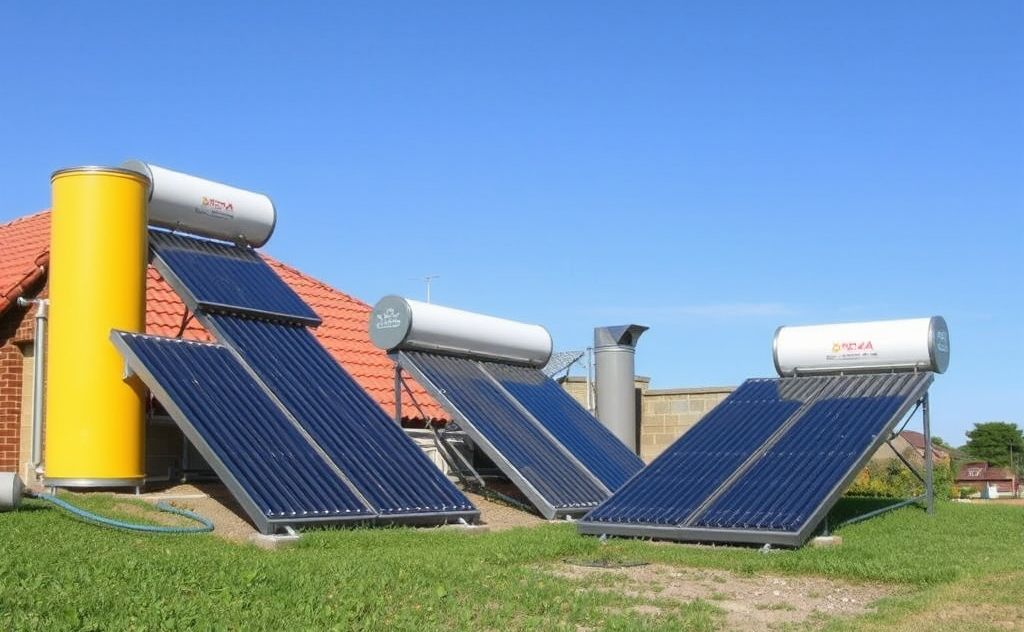

Solar water heaters comparison with diverse designs

How Solar Water Heaters Work

All solar water heating systems use collectors to absorb sunlight and transfer heat to water. The heated water is stored in an insulated tank until needed. When solar energy is insufficient, a backup system (electric or gas) provides additional heating.

Key Components

  • Solar collectors (panels)
  • Heat transfer system (pipes/pumps)
  • Storage tank
  • Backup heating system
Types of Solar Water Heaters Comparison

Types of Solar Water Heaters Compared

1. Flat Plate Collectors

The most common type features a dark absorber plate under glass or plastic covers. Water or heat-transfer fluid flows through tubes attached to the plate.

Pros:

  • Simple, durable design
  • Lower upfront cost
  • Good performance in warm climates

Cons:

  • Less efficient in cold weather
  • Heavier than other types

2. Evacuated Tube Collectors

These consist of parallel glass tubes with vacuum insulation and heat pipes. More efficient than flat plate systems, especially in cold climates.

Pros:

  • 30-40% more efficient than flat plates
  • Excellent cold weather performance
  • Lightweight design

Cons:

  • Higher initial cost
  • More complex installation

3. Integral Collector-Storage (ICS) Systems

Also called “batch” systems, these combine storage and collection in one unit. Water is heated directly in roof-mounted tanks.

READ MORE  Solar Powered Air Conditioner Heater: Ultimate Energy-Saving Solution

Pros:

  • Simplest design with fewest components
  • Low maintenance
  • No heat exchanger needed

Cons:

  • Vulnerable to freezing
  • Heavy when full
  • Less efficient in cold climates

Active vs. Passive Systems

Feature Active Systems Passive Systems
Pumps Yes No
Cost Higher Lower
Efficiency Higher Lower
Maintenance More Less

Active systems use pumps to circulate water or heat-transfer fluid, while passive systems rely on natural convection. According to U.S. Department of Energy, active systems are generally more efficient but cost more to install and maintain.

Climate Considerations

Your local climate significantly impacts which solar water heater works best:

Cold Climates

Evacuated tube systems perform best in freezing temperatures. Indirect systems with antifreeze are essential to prevent pipe damage.

Warm Climates

Flat plate and ICS systems work well, with simpler designs reducing costs. Direct circulation systems can be used without freeze protection.

Cost Comparison

Solar water heater prices vary by type and size:

  • Flat plate systems: $3,000-$8,000 installed
  • Evacuated tube systems: $5,000-$10,000 installed
  • ICS systems: $2,500-$5,000 installed

Federal tax credits can offset 30% of installation costs through 2032. Many states offer additional incentives.

Efficiency and Performance

Solar water heaters typically provide 50-80% of a household’s hot water needs. Performance depends on:

  • Collector type and size
  • Local solar resource
  • System orientation and tilt
  • Hot water usage patterns

For optimal performance, consider pairing your solar water heater with a high-efficiency water heater thermostat to manage backup heating.

Maintenance Requirements

All solar water heaters require some maintenance:

  • Annual inspections
  • Periodic fluid changes (in indirect systems)
  • Pump maintenance (active systems)
  • Component checks every 3-5 years
READ MORE  Solar Water Heater Maintenance: 12 Pro Tips to Boost Efficiency

For related heating solutions, explore our guide to built-in gas heaters that can serve as backup systems.

Choosing the Right System

Consider these factors when selecting a solar water heater:

  1. Your local climate and weather patterns
  2. Available roof space and orientation
  3. Household hot water demand
  4. Upfront budget and long-term savings goals
  5. Local building codes and regulations

According to Penn State University research, properly sized systems can pay for themselves in 5-10 years through energy savings.
