Solar Heater Installation: Key Factors for Maximum Efficiency

Yes, installation considerations for solar heaters include roof orientation, shading, local climate, structural integrity, and proper plumbing and electrical connections.

Installing a solar water heating system requires careful planning to ensure optimal performance and longevity. From roof assessments to climate considerations, proper installation can make the difference between an efficient system and one that underperforms.

Solar heater installation tips and considerations

Roof Suitability for Solar Heaters

Your roof’s characteristics directly impact solar heater performance. Key factors include:

Structural Integrity

Solar water heaters add 3-4 pounds per square foot of weight. Older roofs may need reinforcement. Have a professional assess your roof’s load capacity before installation.

Orientation and Angle

South-facing roofs with 15-40 degree slopes are ideal in the northern hemisphere. East or west-facing roofs can work but may produce 10-20% less energy. For flat roofs, angled mounts can optimize sun exposure.

Shade Analysis

Even partial shading can significantly reduce efficiency. Use tools like NREL’s solar maps to assess your location’s solar potential. Trim or remove trees that cast shadows during peak sun hours (10am-2pm).

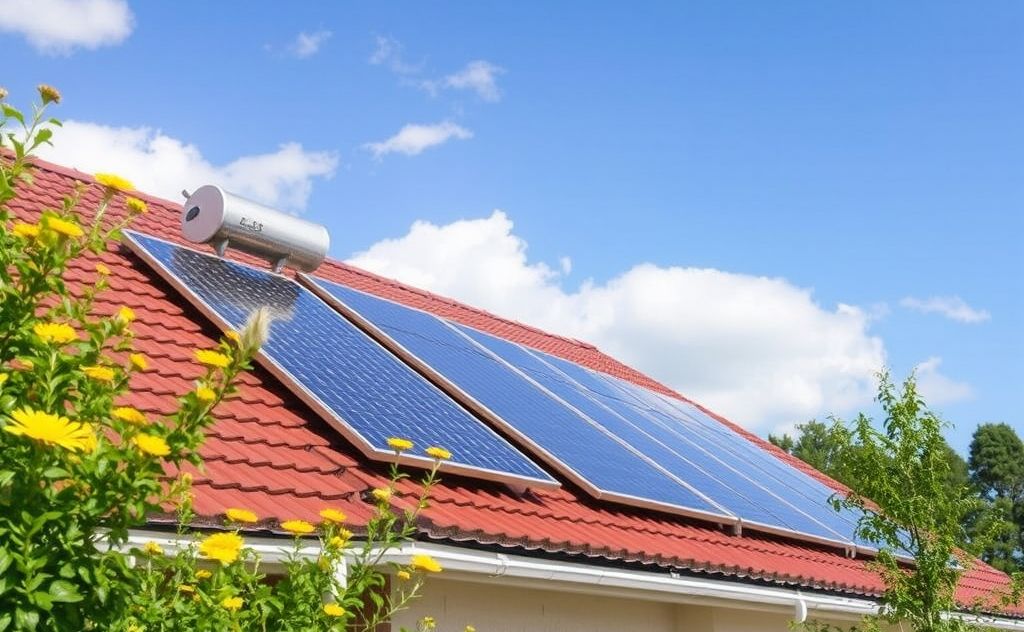

Climate impact solar heater installation factors

Climate Considerations

Solar heaters work in all climates but require different configurations:

Climate Type Recommended System Special Considerations
Cold/Winter Closed-loop with antifreeze Insulate pipes, consider drainback systems
Hot/Arid Open-loop direct Protect against overheating
Humid All systems Prevent microbial growth in tanks

Freeze Protection

In cold climates, choose systems with freeze protection like those using quality check valves and non-toxic propylene glycol solutions.

System Components and Placement

Proper component placement ensures efficient operation:

Collector Placement

Mount collectors as close to the storage tank as possible to minimize heat loss in transfer pipes. Maximum recommended distance is 50 feet.

READ MORE  How Shading Drastically Reduces Solar Heater Performance

Storage Tank Location

Place the storage tank in a conditioned space if possible. For horizontal water heaters, ensure proper support and accessibility for maintenance.

Piping Considerations

  • Use copper or PEX piping for durability
  • Insulate all hot water pipes with at least 1/2″ insulation
  • Install isolation valves for easy maintenance

Local Regulations and Permits

Most areas require permits for solar water heater installation. Common requirements include:

  1. Structural approval for roof-mounted systems
  2. Plumbing permits for water connections
  3. Electrical permits for pump systems
  4. Compliance with local building codes

HOA Restrictions

Some homeowner associations have aesthetic guidelines for solar installations. Check covenants before purchasing equipment.

Professional Installation vs. DIY

While some experienced homeowners install their own systems, professional installation offers advantages:

  • NABCEP-certified installers ensure proper system sizing
  • Warranty protection (many require professional installation)
  • Knowledge of local codes and requirements
  • Proper handling of electrical and plumbing connections

For complex systems or roof-mounted installations, professional installation is strongly recommended. Simple submersible water heaters for pools may be more DIY-friendly.

Maintenance Considerations

Plan for ongoing maintenance during installation:

  • Leave adequate clearance around all components (minimum 3 feet)
  • Install isolation valves for easy component replacement
  • Consider water quality – hard water may require more frequent descaling
  • Plan for periodic inspections (annually for active systems)

Proper installation following these considerations will ensure your solar water heating system provides maximum efficiency and longevity, delivering hot water with minimal environmental impact for years to come.
