Water Heater Amps: What Size Circuit Do You Need?

The required amps for a water heater typically range from 15 to 50 amps, depending on the unit’s size and power specifications.

Understanding the electrical requirements for water heaters is critical for safety and performance. The right amperage ensures your unit operates efficiently without tripping breakers or overheating wires.

Power consumption for water heater amps usage

Standard Water Heater Amperage

Most residential water heaters operate between 15-30 amps. The exact requirement depends on:

  • Heater type (tank vs. tankless)
  • Voltage (120V or 240V)
  • Wattage rating
  • Number of heating elements

Tank Water Heaters

Traditional tank water heaters typically use:

Element Wattage Voltage Amperage Recommended Breaker
4500W 240V 18.75A 30A
3800W 240V 15.83A 20A

These units contain two elements but only one operates at a time. The upper element heats first, then switches to the lower element when the top portion reaches temperature. This alternating operation keeps the total connected load at the single element rating.

Tankless Water Heaters

Tankless models demand significantly more power. A typical whole-house electric tankless unit may require:

  • 120-150 amps at 240V
  • Multiple 40-50 amp breakers
  • Heavy gauge wiring (often 6 AWG or larger)

As noted in industry discussions, these high demands make tankless electric heaters impractical for many homes with standard 150-200 amp services.

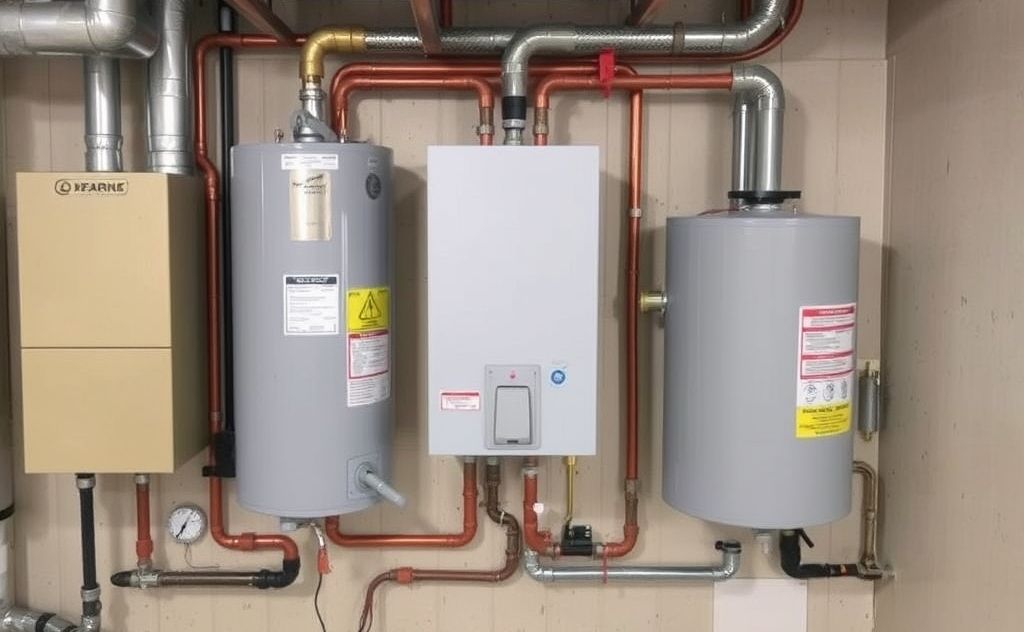

Water heater circuit amp requirements

Circuit Requirements

Proper circuit sizing follows these guidelines:

  1. Calculate amperage: Watts ÷ Volts = Amps
  2. Add 25% for continuous loads (water heaters run >3 hours)
  3. Select next standard breaker size

Example Calculation

For a 4500W, 240V heater:

4500 ÷ 240 = 18.75A

18.75 × 1.25 = 23.4A

Next standard size: 25A or 30A breaker

Wiring Considerations

Match wire gauge to breaker size:

READ MORE  Best Pump Size for Flushing a Tankless Water Heater
Breaker Size Minimum Wire Gauge Common Applications
20A 12 AWG Smaller water heaters
30A 10 AWG Standard tank heaters
40-50A 6-8 AWG Tankless point-of-use units

For whole-house tankless systems, you may need multiple circuits with specialized electrical equipment to monitor the heavy loads.

Alternative Solutions

When electrical service can’t support tankless demands, consider:

Hybrid Heat Pump Water Heaters

These efficient units typically need just a 30A circuit while providing similar performance to conventional electric heaters. They work by transferring heat from surrounding air rather than generating it directly.

Gas Water Heaters

Gas models eliminate large electrical demands entirely. As noted by Energy.gov, they’re often more cost-effective for whole-home heating despite higher upfront costs.

Point-of-Use Electric Heaters

Smaller 120V units serving single fixtures can supplement your main heater. These typically require 15-20A circuits and avoid the massive loads of whole-house tankless models.

Installation Tips

Always:

  • Check local codes – some areas mandate 30A breakers regardless of calculated load
  • Use copper wiring – aluminum requires special terminations
  • Install a disconnect within sight of the unit
  • Consider whole-home load calculations before adding tankless units

For complex installations, professional HVAC tools and expertise ensure safe, code-compliant results.
