HVAC Airflow Science: How Your System Moves Air

The science behind HVAC airflow involves understanding how air moves through ducts, affecting comfort, efficiency, and air quality in indoor environments.

Proper HVAC airflow is the invisible force behind home comfort. It determines temperature consistency, energy efficiency, and indoor air quality. Understanding airflow principles helps homeowners optimize their systems and avoid common problems.

Understanding HVAC airflow dynamics in action

The Physics of HVAC Airflow

HVAC systems move air through pressure differences created by blowers and fans. This airflow follows fundamental physics principles that affect your home’s comfort.

Air Pressure Dynamics

Your HVAC system creates two types of pressure:

  • Positive pressure at supply vents (air pushing out)
  • Negative pressure at return vents (air pulling in)

This pressure differential drives air circulation. According to Energy Clean research, unbalanced pressure leads to hot/cold spots and system strain.

CFM: The Measure of Airflow

Cubic Feet per Minute (CFM) quantifies airflow volume. Proper CFM depends on:

Room Size Recommended CFM
100 sq ft 25-50 CFM
200 sq ft 50-100 CFM
300 sq ft 75-150 CFM

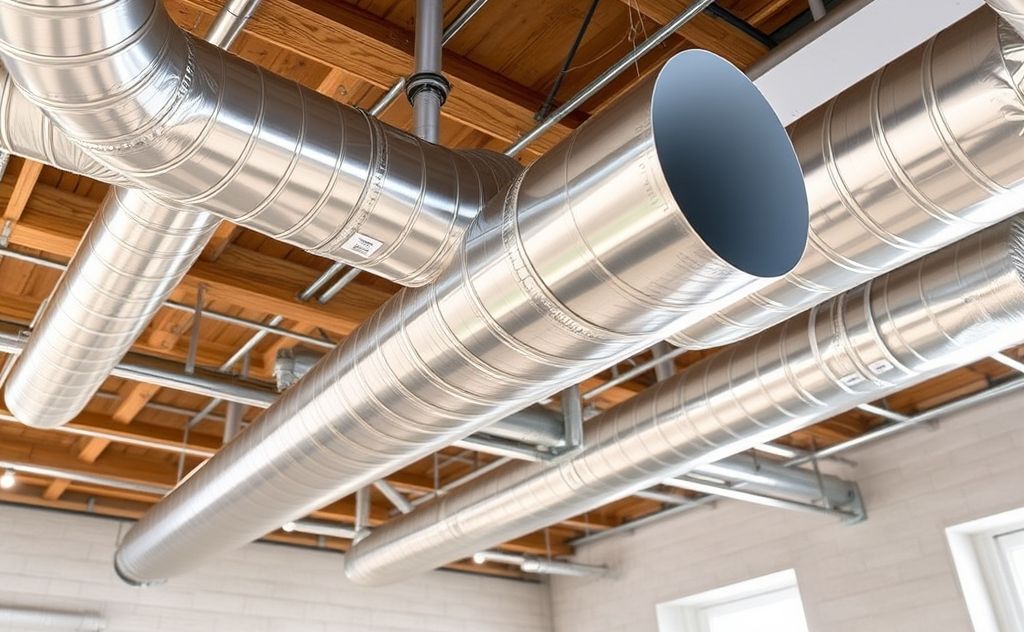

Ductwork design for efficient HVAC airflow

Ductwork Design Principles

Your ducts are the vascular system of your HVAC. Proper design ensures efficient delivery of conditioned air.

Key Duct Characteristics

Effective duct systems feature:

  • Smooth interior surfaces (reduces friction)
  • Proper sizing (oversized and undersized both cause problems)
  • Minimal bends (each 90° turn reduces airflow by 10-20%)
  • Balanced branch lengths

For optimal performance, consider our guide to built-in heating solutions that complement your ductwork.

Common Duct Problems

Watch for these airflow killers:

  1. Leaks (can lose 20-40% of airflow)
  2. Crushed or kinked sections
  3. Poor insulation (causes temperature loss)
  4. Improperly sized transitions
READ MORE  How HVAC Systems Shape Indoor Air Quality Regulations

Airflow Components and Their Roles

Your HVAC system contains several critical airflow components working together.

The Blower Assembly

This motor-driven fan creates the pressure differential. Modern systems use:

  • PSC (Permanent Split Capacitor) motors – older, less efficient
  • ECM (Electronically Commutated Motor) – newer, variable speed

ECM motors can adjust airflow based on demand, improving efficiency by up to 65% according to Jackson & Sons research.

Filters: Airflow’s Double-Edged Sword

While essential for air quality, filters restrict airflow. Balance is key:

Filter Type Airflow Restriction Particle Capture
Fiberglass Low 10-20%
Pleated Medium 40-60%
HEPA High 99.97%

Optimizing Your System’s Airflow

Proper maintenance and upgrades can dramatically improve airflow performance.

Professional Air Balancing

Technicians use specialized tools to measure and adjust:

  • Static pressure
  • CFM at each register
  • Temperature differential

This ensures even distribution throughout your home.

Smart Upgrades

Consider these airflow-enhancing improvements:

  1. Zoning systems with motorized dampers
  2. Variable speed blowers
  3. Aerodynamically designed registers
  4. Duct sealing with mastic compound

For supplemental heating that won’t disrupt airflow, explore our indoor propane space heater options.

DIY Airflow Checks

Homeowners can perform simple tests:

  • Paper test (hold tissue near vents to check airflow)
  • Temperature differential (supply vs return air)
  • Visual duct inspection for obvious issues

Remember that airflow issues often stem from multiple factors. A professional assessment provides the most accurate diagnosis and solution.
