HVAC Insulation Cuts Energy Bills by 20%: Here’s How

HVAC insulation significantly reduces energy consumption by minimizing heat transfer, leading to lower heating and cooling costs and improved system efficiency.

Proper HVAC insulation is one of the most effective ways to reduce energy consumption in homes and commercial buildings. Studies show it can lower heating and cooling costs by up to 20% while improving system performance.

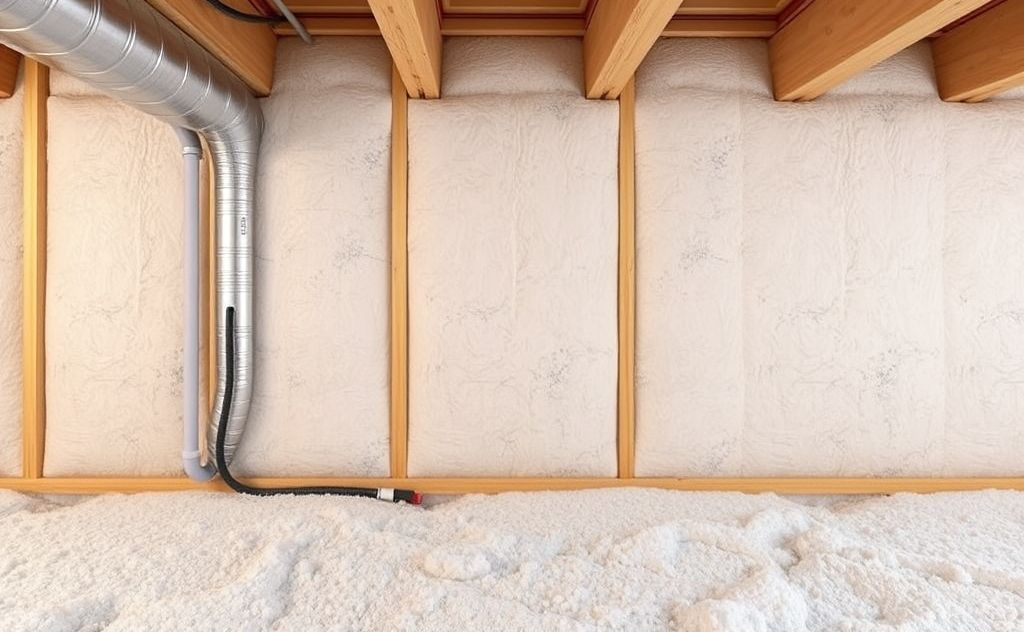

Energy-efficient HVAC insulation benefits explained

How HVAC Insulation Impacts Energy Efficiency

HVAC insulation creates a thermal barrier that prevents heat transfer in ductwork and piping. Without it, systems lose up to 30% of conditioned air through conduction and air leaks.

Key Energy Savings Mechanisms

  • Reduces heat gain/loss in ductwork by 60-90%
  • Minimizes thermal bridging in building envelopes
  • Maintains consistent air temperatures throughout distribution
  • Allows HVAC systems to operate at peak efficiency
Optimal insulation thickness for energy savings

Optimal Insulation Thickness for Maximum Savings

Research from Technische Universität Berlin reveals insulation effectiveness follows a curve of diminishing returns. The sweet spot for wall insulation is typically 60mm.

Insulation Thickness Energy Savings Cost Effectiveness
30mm 65% of potential High
60mm 95% of potential Peak
90mm 98% of potential Low

Real-World Case Study Results

A German single-family home study showed uninsulated HVAC systems consumed 47% more energy over 20 years. Proper insulation reduced this to just 18.4% above baseline.

Beyond Energy: Additional Benefits of HVAC Insulation

System Longevity

Insulated systems experience 30-50% less strain, extending equipment life. This reduces replacement costs and maintenance needs.

Improved Comfort

Proper insulation eliminates hot/cold spots by maintaining consistent air temperatures. Pair with a precise thermostat for optimal results.

Noise Reduction

Insulation absorbs vibration and airflow noise, particularly beneficial for built-in heating systems near living spaces.

READ MORE  How HVAC and Building Insulation Work Together for Efficiency

Choosing the Right Insulation Materials

Material selection depends on application, climate, and budget:

Ductwork Insulation

  • Fiberglass (R-4 to R-8 per inch)
  • Mineral wool (fire resistant)
  • Polyethylene foam (easy installation)

Pipe Insulation

  • Rubber foam (flexible, moisture resistant)
  • Fiberglass with vapor barrier
  • Calcium silicate (high temperature)

According to U.S. Department of Energy, properly sealed and insulated ducts can improve efficiency by 20% or more.

Maintenance Considerations

Insulation performance degrades over time. The Building and Environment journal reports:

  • Fiberglass loses 2-4% R-value annually
  • Foam insulation degrades faster in UV light
  • Compression from repairs reduces effectiveness

Inspect insulation every 3-5 years and replace when showing signs of damage or moisture absorption.
