HVAC Duct Design: The Hidden Key to Energy Efficiency

Effective HVAC duct design enhances energy efficiency by optimizing airflow, reducing resistance, and minimizing energy loss throughout heating and cooling systems.

Your HVAC system could be wasting 30% of its energy through poorly designed ductwork. The right duct design doesn’t just move air – it optimizes your entire system’s performance while slashing energy bills.

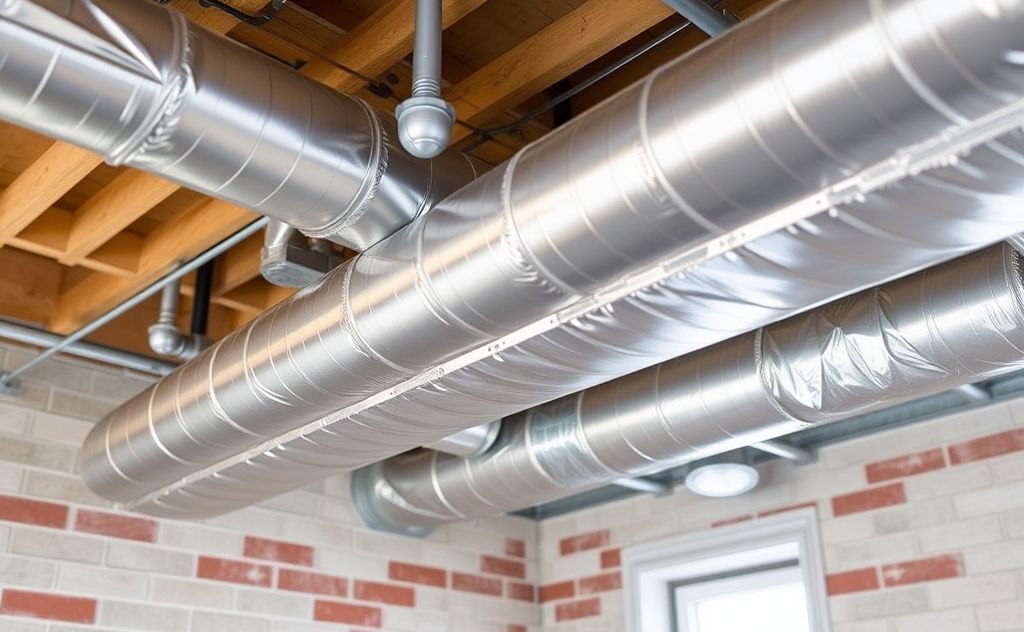

Optimize HVAC duct design for better energy efficiency

Why Duct Design Impacts Energy Efficiency

Ductwork is the circulatory system of your HVAC, yet most homeowners never think about it. The Department of Energy estimates that typical duct systems lose 25-40% of heating or cooling energy through leaks and poor design.

The Physics of Airflow Efficiency

Airflow follows fundamental physics principles. Resistance increases with:

  • Longer duct runs
  • Sharper bends
  • Smaller diameters
  • Rough interior surfaces

Each 90-degree elbow adds the equivalent of 15-20 feet of straight duct resistance. That’s why proper HVAC system design starts with minimizing turns.

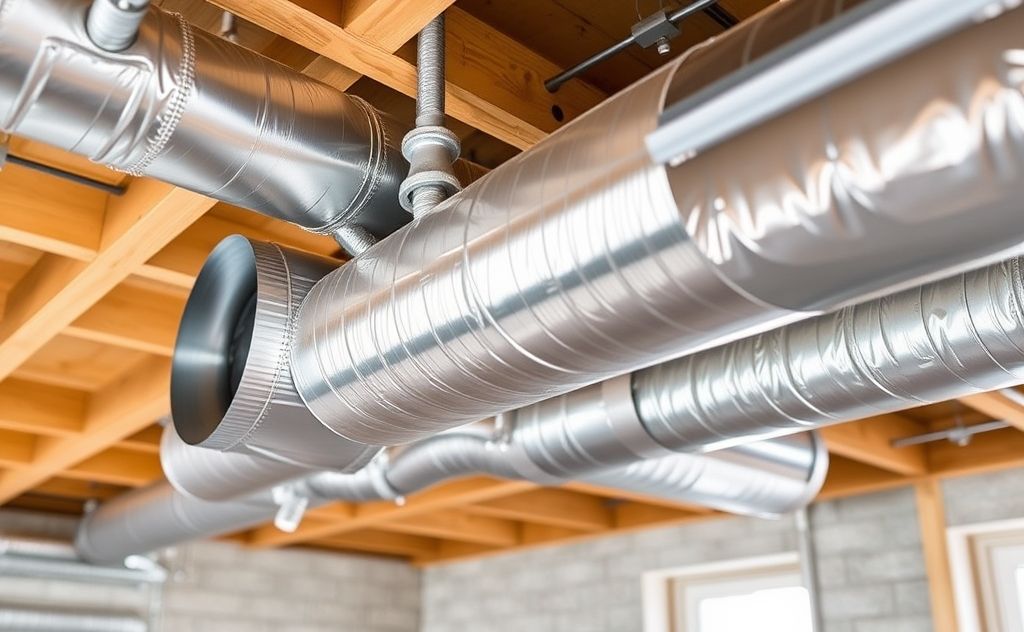

Optimal duct design boosts energy efficiency

Optimal Duct Design Strategies

1. Duct Sizing Calculations

Manual D from ACCA is the industry standard for sizing ducts. Key factors include:

Room Size (sq ft) CFM Requirement Recommended Duct Size
100-150 25-40 CFM 6″ round or 8×4 rectangular
150-250 40-60 CFM 7″ round or 10×4 rectangular
250-400 60-100 CFM 8″ round or 12×4 rectangular

2. Duct Material Selection

Different materials impact efficiency:

  • Galvanized steel: Most durable but requires insulation
  • Flexible duct: Easy installation but higher friction loss
  • Fiberglass: Built-in insulation but prone to mold

For maximum efficiency, consider modern materials with smooth interiors and proper insulation values.

Common Duct Design Mistakes

1. The “Bigger is Better” Myth

Oversized ducts cause:

  1. Reduced air velocity
  2. Poor air mixing
  3. Increased energy use
  4. Temperature stratification
READ MORE  Energy Efficient HVAC Systems for Homes: Save Money & Stay Comfortable

2. Ignoring Static Pressure

Every HVAC system has a maximum static pressure rating. Exceeding it reduces airflow by up to 50%. Proper design keeps total external static pressure below 0.5 inches WC.

Advanced Efficiency Techniques

1. Aerodynamic Design Principles

NASA research on airflow applies to ducts:

  • Use gradual 45° elbows instead of 90° turns
  • Install turning vanes in sharp bends
  • Maintain straight runs of 5x diameter before/after turns

2. Smart Zoning Systems

According to Department of Energy studies, zoning can reduce HVAC energy use by 30%. Key components:

  • Motorized dampers
  • Zone thermostats
  • Bypass ducts

Duct Sealing & Insulation

The average home loses 20-30% of conditioned air through leaks. Professional sealing with mastic (not duct tape) can eliminate these losses. Insulation requirements vary by climate zone:

Climate Zone Minimum R-Value
1-3 (Hot) R-4.2
4-5 (Mixed) R-6
6-8 (Cold) R-8

Future Trends in Duct Design

1. Aerodynamic Optimization Software

New programs like RightSuite Universal use computational fluid dynamics to model airflow before installation.

2. Smart Duct Systems

Emerging technologies include:

  • Self-sealing duct joints
  • Pressure-sensing dampers
  • Variable-air-volume (VAV) controls

These innovations promise to take duct efficiency beyond what traditional designs can achieve.
