HVAC Design Secrets: 7 Proven Ways to Boost Efficiency

To optimize HVAC efficiency through design, incorporate proper insulation, strategically placed ducts, and energy-efficient systems tailored to the building’s layout.

Smart HVAC design can slash energy costs by up to 40% while improving comfort. This guide reveals professional techniques for optimizing your system through strategic planning, component selection, and airflow management.

Optimize HVAC design for energy efficiency

1. Right-Size Your HVAC System

The Goldilocks Principle

An oversized unit short-cycles, wasting energy. Undersized systems run constantly. Use Manual J calculations to determine perfect capacity.

Load Calculation Factors

  • Square footage
  • Window types and placement
  • Insulation levels
  • Local climate data

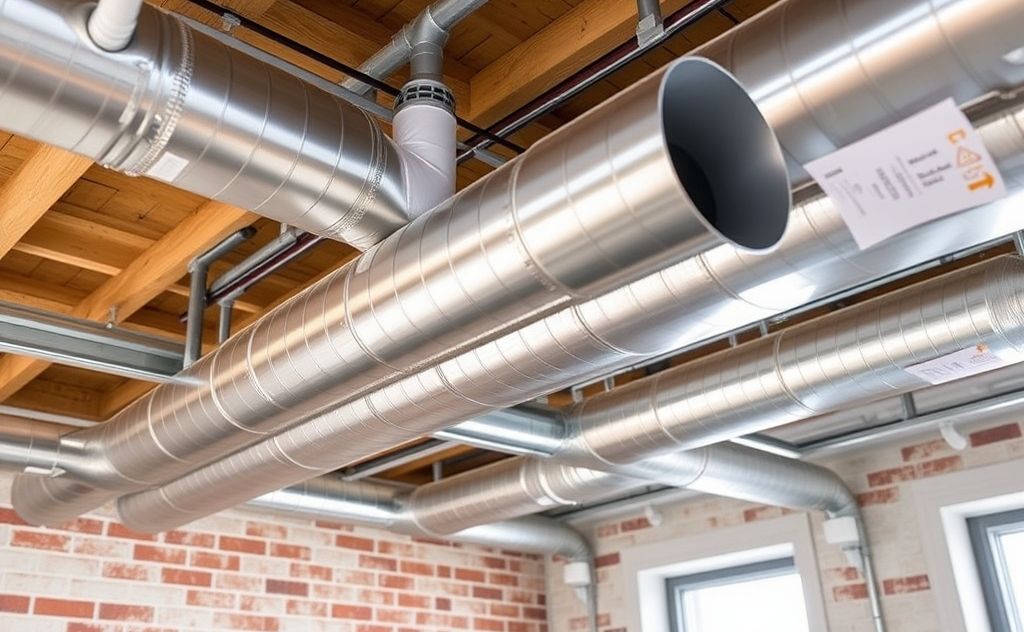

Strategic ductwork design for HVAC efficiency

2. Strategic Ductwork Design

Proper duct design moves air efficiently with minimal resistance. Follow these rules:

Duct Type Max Velocity Ideal Length
Main trunk 900 fpm As short as possible
Branch runs 700 fpm Under 25 ft

Duct Layout Tips

  • Use smooth metal ducts instead of flex
  • Limit elbows to 45° angles
  • Seal all joints with mastic

3. Advanced Zoning Strategies

Divide your space into separate temperature zones for precision control. Smart zoning can cut energy use by 30%.

Zoning Components

  1. Motorized dampers
  2. Zone control panel
  3. Multiple thermostats

For small spaces, consider built-in gas heaters as supplemental zone solutions.

4. High-Efficiency Equipment Selection

Look for these ratings when choosing components:

  • Furnaces: 95%+ AFUE
  • AC Units: 18+ SEER
  • Heat Pumps: 10+ HSPF

Variable-speed compressors and ECM blower motors offer superior efficiency. Smart thermostats optimize performance.

5. Computational Fluid Dynamics (CFD) Modeling

CFD software predicts airflow patterns before installation. Benefits include:

  • Identifies dead zones
  • Optimizes register placement
  • Reduces hot/cold spots

According to EKO Energies research, CFD can improve system efficiency by 15-25%.

READ MORE  Retrofitting Buildings With Energy-Efficient HVAC Systems

6. Thermal Envelope Optimization

Building Shell Improvements

  • Upgrade to R-38 attic insulation
  • Install low-e windows
  • Seal all air leaks

Duct Insulation

Use R-8 insulation on all ducts in unconditioned spaces. This prevents 20-40% energy loss.

7. Smart Maintenance Protocols

Regular upkeep preserves efficiency gains:

  1. Monthly filter changes
  2. Annual professional tune-ups
  3. Biannual duct inspections

For specialized systems like dryer heaters, follow manufacturer maintenance schedules.

Proper HVAC design combines science and practical experience. By implementing these strategies, you’ll achieve maximum comfort with minimal energy consumption.
