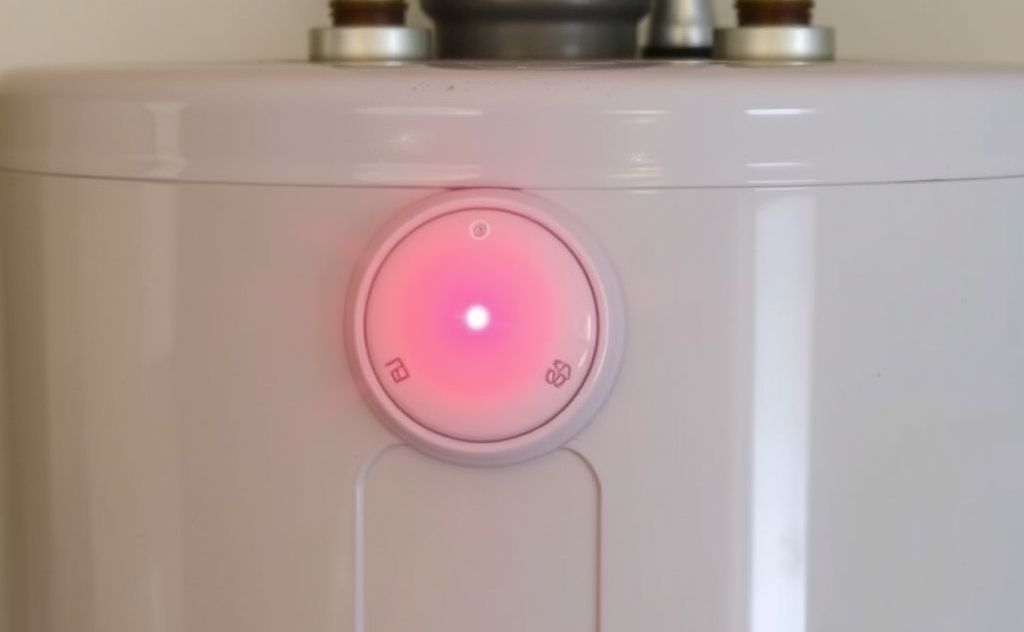

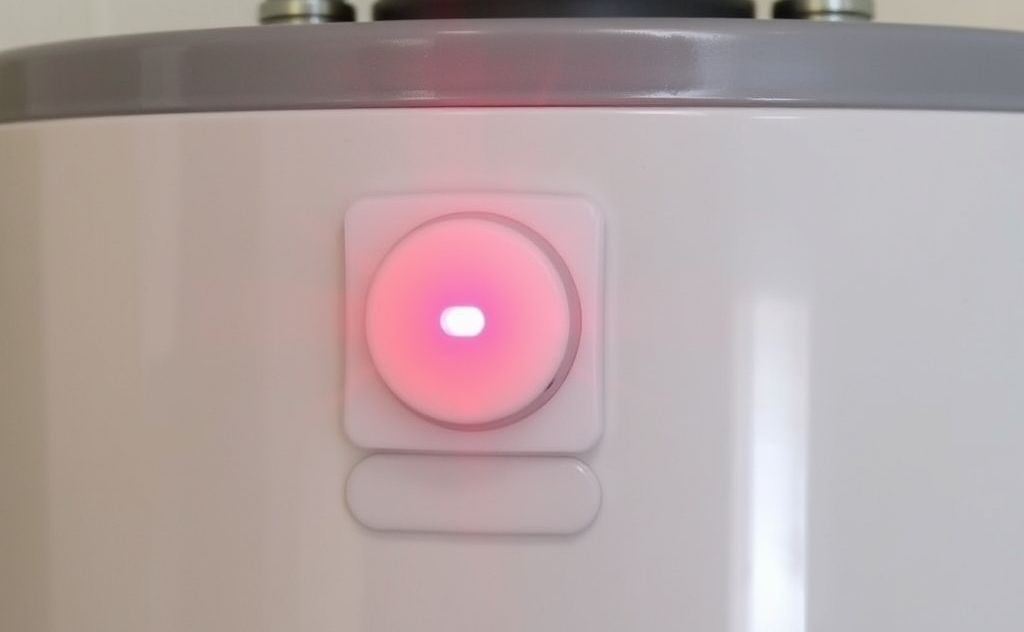

That red blinking light on your Honeywell water heater is a call for help. It’s the system’s primary way of communicating a problem, turning a simple hot shower into a source of anxiety. Don’t panic. This guide will translate that cryptic flash pattern into actionable steps, helping you diagnose and potentially fix the issue yourself.
Before you start, a quick note on tools. Having the right replacement part on hand can save a second trip. For many Honeywell models, a common fix involves the thermocouple or gas control valve. Many professionals keep a universal thermocouple like the Resideo CQ100A1013U 24-Inch in their kit for such repairs. It’s a reliable, compatible part for numerous units.
Understanding the Red Blinking Light: Your Error Code Guide
That flash isn’t random. It’s a specific error code. The pattern tells the story. You’ll need to count the number of red flashes, pause, and then count again. This is the core of Honeywell water heater error codes interpretation.
Heres a quick reference table for common flash patterns:
| Red Flashes | Likely Meaning | Primary Concern |
|---|---|---|
| 1 Flash | Ignition Lockout | The system tried and failed to light multiple times. |
| 3 Flashes | Pressure Switch Fault | Vent/airflow issue or switch failure. |
| 4 Flashes | Limit Switch Lockout | Overheating condition detected. |
| 5 Flashes | Flame Loss Error | Pilot or main burner went out after lighting. |
So, what does 3 red flashes mean on Honeywell water heater? It typically points to a blocked vent or a faulty pressure switch. Your system isn’t confirming proper exhaust flow, so it shuts down for safety. This is a classic gas water heater error.
Step-by-Step Visual Troubleshooting Checklist
Follow this logical sequence. Always turn off the gas supply to the heater before beginning any inspection.
- Observe the Pattern: Count the flashes accurately. Write it down.
- Check the Pilot Light: Is it lit? A water heater pilot light that is weak, yellow, or out is a huge clue.
- Listen for Sounds: Do you hear the gas valve click? Do you hear the spark trying to ignite?
- Inspect the Viewport: Look for soot, debris, or a cracked window.
- Basic Reset: Often, turning the gas control knob to “OFF,” waiting five minutes, and then turning it back to “PILOT” can clear a temporary lockout.
Common Causes & How to Diagnose Them
Most problems fall into a few categories. Your red light flashing troubleshooting mission is to find which one.
Thermocouple Failure: The Usual Suspect
The thermocouple is a small sensor that sits in the pilot flame. Its job is to prove the pilot is on. If it fails, the gas valve shuts off. A Honeywell water heater red light but pilot is lit scenario often points here.
- Symptom: Pilot won’t stay lit after you release the knob.
- Diagnosis: The thermocouple may be corroded, misaligned, or simply old.
- Fix: It can be cleaned (lightly with fine sandpaper) or replaced. This is a common DIY fix.
Gas Valve and Ignition System Faults
Modern Honeywell units use electronic ignition. Problems here lead to an ignition system fault.
- Symptom: No clicking sound, or clicking but no ignition.
- Diagnosis: Could be a faulty igniter, a clogged pilot tube, or deeper gas valve problems.
- Fix: Cleaning the pilot assembly is DIY. Replacing an igniter or the valve itself is more advanced.
Airflow and Vent Blockages
Your heater needs to breathe in air and exhaust gases safely. A blockage triggers safety switches.
Check the exterior vent cap for bird nests, leaves, or snow. Inside, ensure the area around the heater is clear. This simple check solves many “no heat” calls.
DIY Fixes vs. When to Call a Professional
Where should you draw the line? Your safety is the priority.
Confident DIY Tasks
- Resetting the control module.
- Relighting the pilot light.
- Cleaning the thermocouple and pilot assembly.
- Checking for obvious vent blockages.
- Learning how to reset the control board after a red blinking light (usually via the power or gas knob).
Time to Call a Pro
- You smell gas at any point (evacuate and call the utility company first).
- The diagnosis points to internal gas valve problems or a faulty control module.
- Vent piping is damaged or incorrectly installed.
- You’re uncomfortable with gas components. The cost to repair a Honeywell water heater with a blinking red light is worth the safety assurance.
For complex diagnostics, the official source has technical manuals. And if you’re considering a full replacement, it’s smart to research brands. For example, Bradford White is often praised for its reliability and durability, making it a good choice for a long-term solution.
Safety Precautions & System Reset Procedures
This cannot be overstated. Gas appliances demand respect.
- Turn Off the Gas: Always shut off the gas supply valve before working.
- Ventilate: If you suspect a gas leak (rotten egg smell), don’t flip switches. Leave the area and call for help.
- Follow Instructions: Your unit’s manual is the final authority.
Performing a Full System Reset
This clears the error code memory in the control module. It’s the first step in any water heater diagnostic mode.
- Turn the gas control knob to “OFF.”
- Turn off the electrical power to the water heater at the breaker.
- Wait five full minutes. This lets the system fully discharge.
- Restore power first, then turn the gas knob to “PILOT.”
- Attempt to relight the pilot following the manufacturer’s lighting instructions.
If the problem recurs, the reset merely cleared the symptom. The underlying cause is still present. This is where deeper diagnosis begins. For homes with different needs, a tankless system like those from Navien can be an efficient alternative, though troubleshooting involves different error codes.
That persistent red blink is a solvable puzzle. Start by decoding its patternthe flash count is your roadmap. Methodically check the simple things first: the pilot light, the thermocouple, the vent. Often, the fix is straightforward. When it’s not, or when gas is involved, calling a certified technician is the smartest move. It protects your home and gets your hot water flowing again. You’ve got this.
