HVAC systems manage ventilation by using fans and ducts to circulate fresh air, filter pollutants, and maintain indoor air quality and temperature control.
HVAC systems play a critical role in maintaining healthy indoor air quality through advanced ventilation strategies. These systems balance fresh air intake, filtration, and air circulation to create comfortable, safe environments in homes, offices, and commercial spaces.
Core Ventilation Methods in HVAC Systems
Modern HVAC systems use three primary approaches to manage ventilation:
- Dilution ventilation: Mixes outdoor air with recirculated indoor air
- Local exhaust ventilation: Removes contaminants at their source
- Demand-controlled ventilation: Adjusts airflow based on occupancy sensors
Air Exchange Rates Explained
HVAC systems measure ventilation effectiveness in air changes per hour (ACH). Different spaces require specific ACH levels:
| Space Type | Recommended ACH |
|---|---|
| Offices | 4-6 |
| Classrooms | 6-8 |
| Laboratories | 8-12 |
| Hospitals | 12-15 |

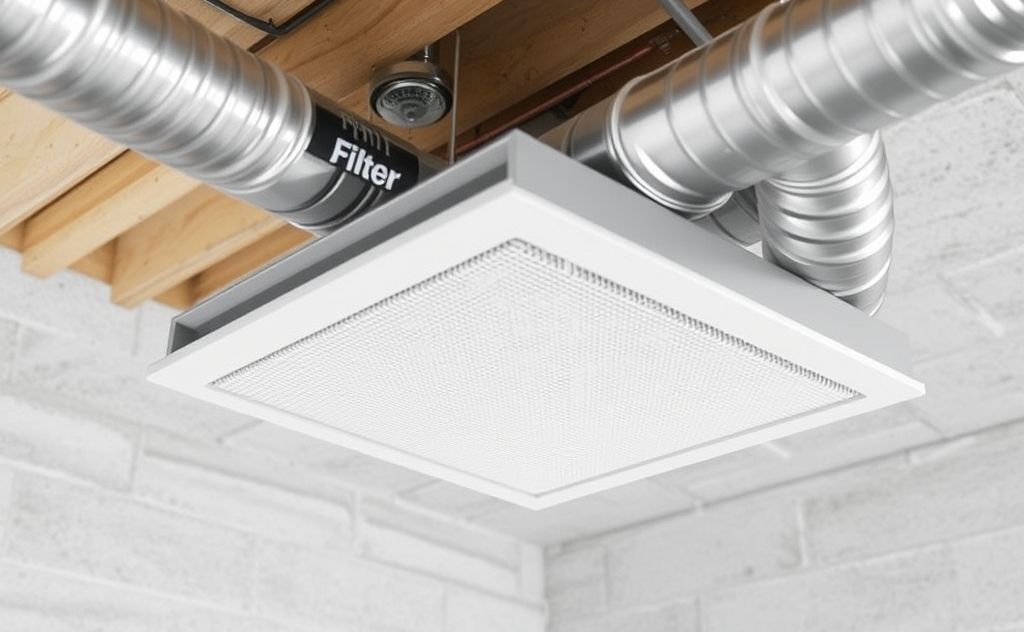

Advanced Filtration Technologies
HVAC systems incorporate multiple filtration stages to remove contaminants. The MERV rating system classifies filter effectiveness:
MERV Rating Breakdown
- MERV 1-4: Basic dust control
- MERV 5-8: Pollen, mold spores
- MERV 9-12: Legionella, humidifier dust
- MERV 13-16: Bacteria, smoke, virus carriers
Many modern systems now use MERV 13 filters as standard, which capture 85% of particles 1-3 microns in size.
Energy Recovery Ventilation
Newer HVAC systems incorporate energy recovery ventilators (ERVs) that:
- Capture heat from exhaust air
- Transfer it to incoming fresh air
- Maintain humidity balance
- Reduce energy costs by up to 40%
According to ASHRAE, proper ERV implementation can significantly improve ventilation efficiency without increasing energy consumption.
Smart Ventilation Controls
Modern systems use advanced sensors and controls to optimize ventilation:
- CO2 sensors adjust airflow based on occupancy
- VOC detectors respond to pollutant levels
- Automated damper systems balance pressure
- Cloud-based monitoring for system optimization
Demand-Controlled Ventilation Example
A conference room HVAC system might:
- Start with minimum ventilation (20 CFM/person)
- Detect rising CO2 levels via wall sensors
- Gradually increase to 35 CFM/person
- Return to baseline when room empties
Specialized Ventilation for Unique Spaces
Different environments require customized ventilation approaches:
Laboratory Ventilation
Lab HVAC systems often feature 100% outside air with no recirculation, plus:
- Chemical fume hoods with face velocity alarms
- Negative pressure containment
- Redundant exhaust fans
Healthcare Facilities
Hospital systems implement:
- Pressurization cascades (positive to negative)
- HEPA filtration for critical areas
- UVGI in air handlers
The CDC recommends specific ventilation strategies for healthcare settings to control infection transmission.
Maintenance for Optimal Ventilation
Regular HVAC maintenance ensures proper ventilation:
- Monthly filter inspections
- Quarterly duct inspections
- Annual airflow measurements
- Biannual damper calibrations
Properly maintained systems can maintain design ventilation rates throughout their service life, while neglected systems may lose 30-40% of their capacity.
