You’re standing in a cold shower, and the first thought is: is the water heater broken? If it’s electric, your mind might jump to fuses. It’s a logical question. Does a water heater have a fuse? The short answer is yes, but probably not in the way you’re picturing. Most modern homes use circuit breakers, not the screw-in fuses of old. However, the principle is identicala safety device designed to interrupt power if something goes wrong.
Your water heater’s electrical system is a network of critical components working in harmony. When that hot water stops flowing, diagnosing the issue starts with understanding this system. Is it a simple reset or a sign of a deeper problem? Let’s unravel the mystery. For any electrical diagnostic work, having the right tools is key. A reliable multimeter is indispensable for checking voltage and continuity. Many DIYers and professionals find a kit like the bnafes 10 Pcs multimeter lead set incredibly useful for safe, accurate testing.
Do Water Heaters Have Fuses? The Core Answer
Technically, your electric water heater does not have a standalone, user-replaceable fuse like an appliance plug might. Instead, its overcurrent protection is handled by a dedicated circuit breaker in your home’s main service panel (the “fuse box”). This breaker acts as the primary fuse for the entire unit. When people ask about the “water heater fuse location,” they are almost always referring to this breaker.
Internally, the water heater has its own safety “fuses.” These are not fuses you replace, but automatic resetting devices. The two most important are the high-limit switch and the thermostat(s). Think of them as specialized, internal circuit breakers for the tank itself. They are the first line of defense against overheating. If your unit is particularly old or part of a specialized system, you might find an actual fuse on a control board, but this is rare in standard residential models.
Understanding Your Water Heater’s Electrical System

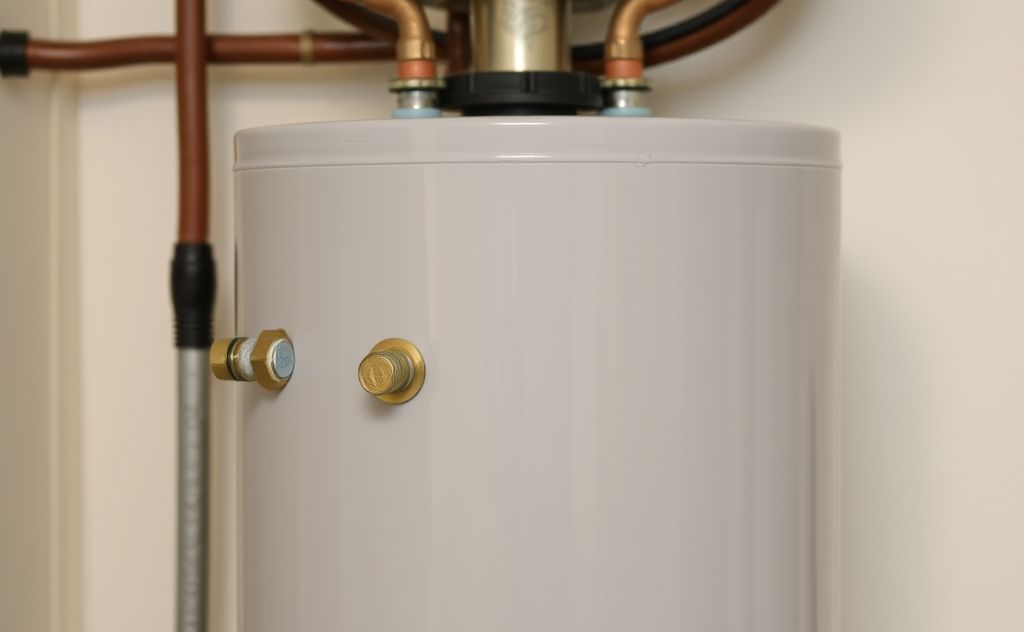

To troubleshoot effectively, you need a basic map of the system. Power flows from your main panel’s breaker to the water heater. There, it connects to a junction box on top of the unit. Behind an access panel (or two) lie the crucial components.
Key Components Beyond the “Fuse”
- Thermostat: This controls the temperature. Most electric heaters have twoone for the upper and one for the lower heating element.
- High Limit Switch: This is a critical safety device. If the thermostat fails and the water gets dangerously hot, this switch cuts power. It usually has a red reset button.
- Heating Elements: These are the submerged rods that actually heat the water. They can burn out or short circuit, causing the breaker to trip.
- Access Panels: Insulated covers you must remove to reach the thermostats and elements. Remember to turn off power first!
This setup is common across many brands, whether you have a standard tank model or are considering if a navien tankless unit is right for you. The electrical principles of safety and control remain consistent.
How to Diagnose a Blown Fuse or Tripped Breaker
So, your water heater is not working. Before you panic, follow this diagnostic path. It answers the common question: how to tell if water heater fuse is blown or if it’s something else.
Step 1: Check the Main Service Panel
Go to your circuit breaker panel. Look for the breaker labeled “water heater” or “WH.” If it’s in the middle (tripped) position, flip it fully OFF, then back ON. A breaker that immediately trips again signals a serious fault. This is the most common “water heater fuse blown” scenario.
Step 2: Check the Local Reset
If the breaker is fine, the issue may be internal. Turn off the power at the breaker for safety. Remove the access panel(s) and insulation on the water heater. Look for the red reset button on the upper thermostat’s high limit switch. Press it. If it clicks, it had tripped. Restore power and see if the heater works. If it trips again quickly, you have a recurring problem.
Step 3: Systematic Testing
If resets don’t work, you need to how to check water heater fuse equivalentsthe components. With a multimeter (like one used with the bnafes 10 Pcs leads), you can test for:
- Power at the terminal: Confirm 240V is reaching the unit.
- Continuity of the heating elements: A burned-out element has infinite resistance.
- Continuity of the thermostats: They should show continuity when calling for heat.
This process helps pinpoint whether the issue is a failed component or a wiring fault. A consistently good water heater brand will have accessible service points to make these checks somewhat easier.
Step-by-Step Guide to Resetting or Replacing a Fuse
Let’s break down the actions for the two main “reset” scenarios. Safety is non-negotiable. Always shut off power at the breaker before touching the water heater.
Resetting a Tripped Circuit Breaker
- Locate the correct double-pole breaker in your main panel.
- If it’s tripped, firmly push the handle to the FULL OFF position.
- Then, push it firmly to the ON position. You should feel a distinct click.
- Listen at the water heater. You might hear a faint hum if the elements are engaged.
If it holds, you’re likely done. If it trips instantly, do not repeatedly reset it. This is a direct command to call a professional.
Resetting the High Limit Switch
- Turn OFF the circuit breaker. Verify power is off with a non-contact voltage tester.
- Remove the screw(s) holding the upper access panel. Carefully pull back the insulation.
- Locate the top thermostat. You’ll see a red button near itthe high limit reset.
- Press the button firmly. You may hear or feel a click.
- Replace the insulation and panel, restore power at the breaker, and wait for hot water.
This addresses reset water heater fuse procedures for the internal safety. But what about water heater fuse replacement? Replacing a true fuse is rare. More likely, you’re replacing a failed component like a heating element or thermostat.
| Symptom | Likely Culprit | Action |
|---|---|---|
| No hot water, breaker is ON | Tripped high limit, failed thermostat, or one failed element | Reset high limit. Test thermostats/elements. |
| Breaker trips immediately when reset | Short circuit in wiring, a grounded element, or a failed breaker | Stop. This requires professional diagnosis. |
| Some hot water, but runs out very fast | One heating element has failed | Test both elements for continuity. |
| Water is too hot or not hot enough | Faulty thermostat calibration | Test and likely replace the thermostat. |
When to Call a Professional Electrician or Plumber
DIY has its limits. Knowing them protects your home and your safety. So, can I replace a water heater fuse myself? For the circuit breaker or internal reset, yes. For component-level repair, maybeif you’re skilled and cautious. But here are the clear signs to pick up the phone.
Call an Electrician Immediately If:
- The breaker trips repeatedly (why does my water heater keep blowing fuses is a question for a pro).
- You see scorch marks, smell burning, or notice melted wire insulation at the connection points.
- You are uncomfortable testing live 240-volt circuits. This is high voltage that can be lethal.
- The issue seems to be in the wiring from the panel to the unit.
Call a Plumber or Water Heater Specialist If:
- You’ve confirmed an element or thermostat needs replacement and aren’t confident doing it.
- The tank is leaking. No electrical fix will solve a physical tank failure.
- The unit is very old. Repeated failures may indicate it’s more cost-effective to replace the entire heater.
Complex systems, like some high-efficiency or tankless models, almost always require a certified technician. For broader context on efficient systems, the official energy guide is an excellent resource.
Beyond the Immediate Fix

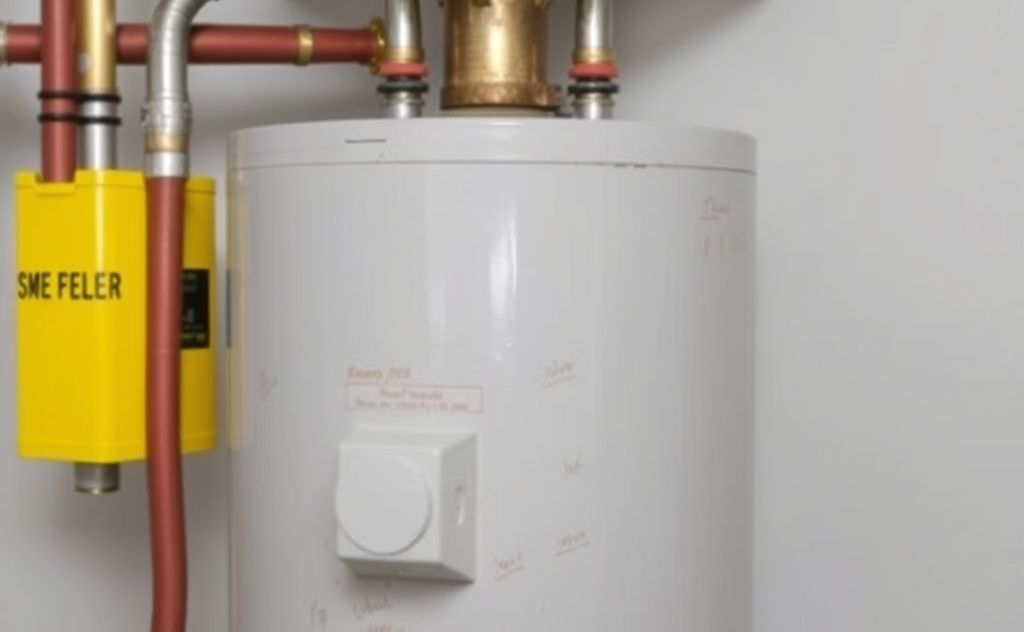

A single tripped breaker can be a fluke. Recurring trips are a symptom. Why does my water heater keep blowing fuses? Common reasons include a failing heating element that’s shorting to ground, a thermostat stuck “on” causing constant cycling, sediment buildup causing the elements to overheat, or even a deteriorating wiring connection that’s creating resistance and heat.
Addressing the root cause is cheaper than repeated component failure. Annual maintenance, like flushing the tank to remove sediment, can prevent many of these electrical issues. It extends the life of the heating elements and allows the thermostats to work efficiently.
Your water heater’s electrical system is robust but simple. Its safety devicesthe circuit breaker and the internal high limit switchare there for a reason. Listening to them, whether through a tripped breaker or a cold shower, is the first step in responsible home maintenance. Start with the simple resets. Arm yourself with knowledge and a good multimeter. But respect the line where a professional’s expertise is the smartest, and safest, investment you can make.
