Can You Safely Enclose a Furnace and Water Heater Together?

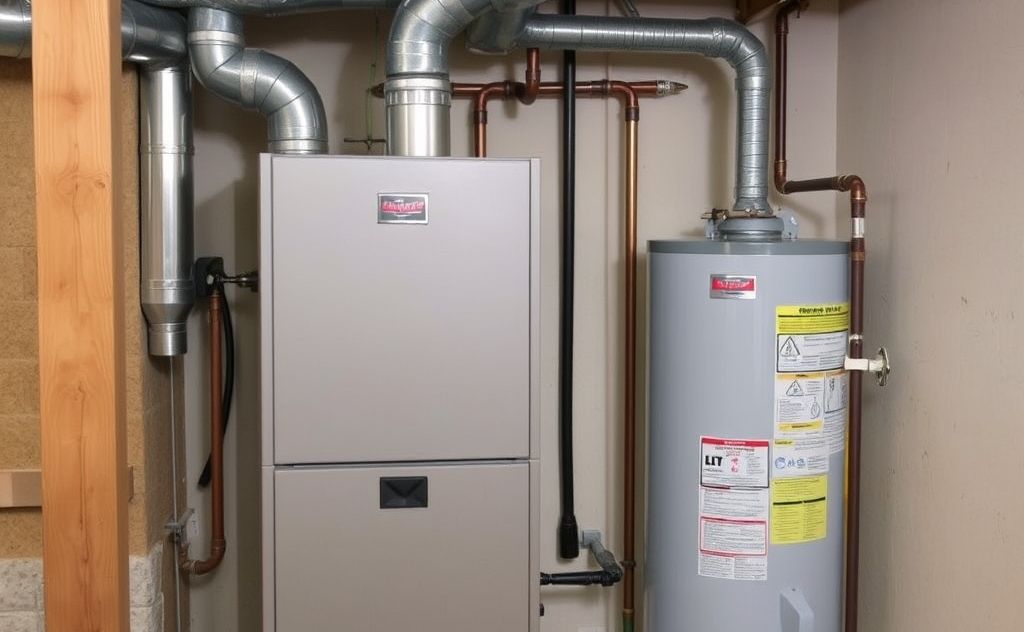

You just finished framing the new utility closet. It looks clean, hides the mechanicals, and frees up floor space in the garage. Then you stop and look at the gas furnace and the 40-gallon water heater sitting side by side. A question hits you: can you actually box these in without creating a hazard?

Short answer: yes, you can enclose them together, but only if you follow specific combustion air, clearance, and venting rules. The moment you seal them in without proper planning, you risk carbon monoxide poisoning, furnace short-cycling, and failed inspections. This article walks through the exact measurements and code references you need to build a safe, legal enclosure, including details on can you enclose a tankless water heater.

You’ll learn how to calculate combustion air, why the 30-inch clearance rule matters, and how to avoid the backdrafting trap that kills people every year. I’ll also cover how to build louvered doors with correct CFM ratings and why high-efficiency furnaces change the math entirely.

If you’re working on an RV or camper, the enclosure rules differ slightly. A quality replacement door like the Suburban Flush Mount Water Heater Door keeps the exterior access panel sealed and weatherproof while still allowing proper airflow to the unit’s venting system.

Is It Legal and Safe to Enclose Both Appliances?

Building codes allow it. The International Residential Code (IRC) and International Fuel Gas Code (IFGC) both permit a furnace and water heater to share a closet or mechanical room, provided each appliance gets enough combustion air and meets clearance distances from combustible materials.

The key distinction is between a closet and a mechanical room. A closet is typically a small, dedicated space with a door. A mechanical room is larger and often accessible from outside. Codes treat them similarly for combustion air, but fire-rated construction requirements differ. Closets often need a fire-rated door (usually 20-minute or 45-minute rated) if they open into a living space. Mechanical rooms with exterior access don’t always carry that requirement.

You also need to check your local amendments. Some jurisdictions adopt the model codes verbatim; others add stricter rules. A quick call to your local building department saves you from ripping out drywall later.

The #1 Rule: Combustion Air Requirements (CFM)

Atmospheric-draft gas appliances pull combustion air from the room. If the room is sealed too tight, the burners starve, producing carbon monoxide instead of complete combustion. This is non-negotiable.

The IFGC provides two methods for sizing combustion air. The first is the standard method, which requires 1 square inch of free vent area per 1,000 BTU/hr of combined appliance input. The second is the known-air-infiltration method, which allows smaller openings if the building has measured air leakage.

For most homes, the standard method is simpler and safer. Add the BTU ratings of your furnace and water heater. A typical furnace runs 60,000 to 100,000 BTU/hr. A standard water heater runs 30,000 to 40,000 BTU/hr. Combined, you’re often looking at 100,000 to 140,000 BTU/hr.

Calculating Your Required Air Intake

Let’s do an example. Furnace at 80,000 BTU/hr plus water heater at 36,000 BTU/hr equals 116,000 BTU/hr total. Divide by 1,000. You need 116 square inches of free vent area.

Free vent area is not the same as the physical opening size. A louvered grill blocks some airflow. A typical wood louver with a 1/4-inch gap has about 60-70% free area. A metal louver with a 1/2-inch gap might hit 75%. So a 12×12-inch grill with 70% free area only delivers about 100 square inches of actual airflow. You’d need a larger grill or two grills to hit 116 square inches.

One opening must be within 12 inches of the ceiling, and the other within 12 inches of the floor if you use two openings. This creates a natural convection loop. Warm air exits high, cool air enters low. Single openings are allowed in some cases but only if they meet stricter size requirements.

For a completely airtight enclosure, you need two permanent openings. One high, one low. Each sized at 1 square inch per 1,000 BTU/hr of total input. No exceptions.

Clearance Codes: The 30-Inch Rule and Beyond

Clearance distances protect you from fire. The furnace and water heater both generate heat, and the enclosure walls are combustible unless you use fire-rated materials.

The IRC requires a minimum of 30 inches of clearance in front of the appliance for servicing. This isn’t just a suggestion. A technician needs room to pull the burner assembly, replace a blower motor, or drain the tank. If you build the enclosure too tight, you’ll pay double for labor because the tech fights for space.

Side and rear clearances depend on the specific appliance model. The nameplate on each unit lists the required clearances from combustible materials. Typical numbers are 6 inches on the sides and rear for a water heater, and 1 inch to 6 inches for a furnace depending on the model. Some high-efficiency furnaces need up to 6 inches on the sides for the condensate drain and vent connections.

I’ve seen people stuff insulation around the flue pipe to “protect” the wall. That’s wrong. Insulation traps heat and can cause the vent to overheat. The code requires an air gap, not insulation.

Venting and Exhaust Flue Separation

The furnace and water heater each have their own exhaust flue. You cannot combine them into a single vent unless the manufacturer explicitly allows it. Most don’t.

Atmospheric-draft units use a draft hood and rely on natural buoyancy to push exhaust up the chimney. If you enclose them too tightly, the draft can stall. That’s when combustion gases spill into the room instead of going up the flue.

High-efficiency condensing units use PVC or ABS plastic vent pipes because the exhaust temperature is low enough not to melt them. These pipes must be sloped back to the appliance to allow condensate to drain. If you run them horizontally through the enclosure, maintain at least 1/4 inch of slope per foot.

Check the vent termination requirements too. The flue exit outside must be at least 3 feet above any forced-air inlet within 10 feet. This prevents the furnace from pulling its own exhaust back inside.

The Danger of Negative Pressure (Backdrafting)

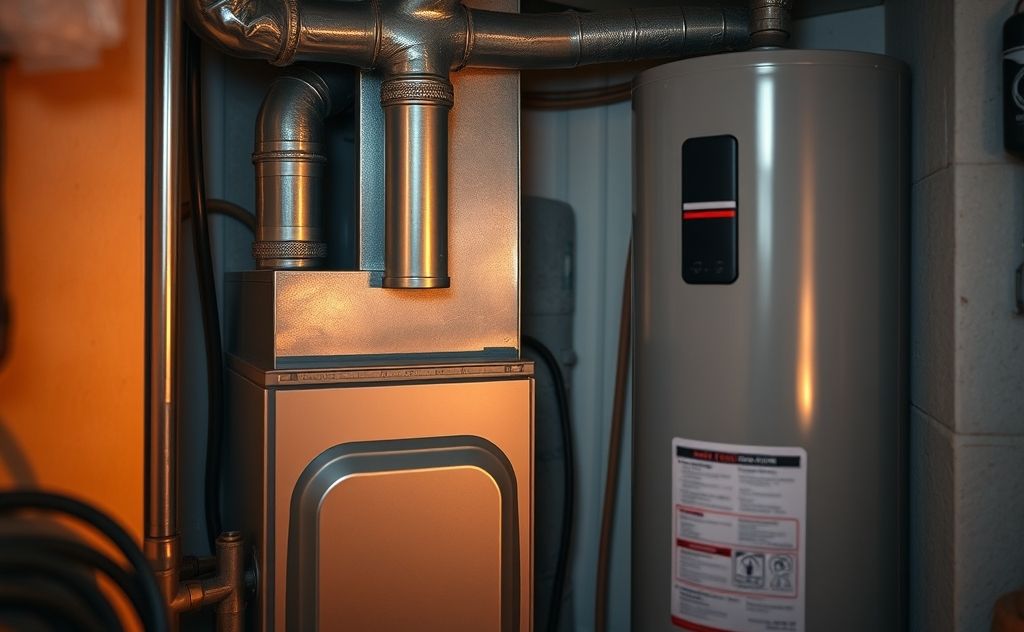

Here’s the scenario that keeps HVAC pros up at night. The enclosure is sealed, the exhaust fans in the bathroom and kitchen are running, the dryer is on, and the furnace starts. All those fans pull air out of the house. The enclosure becomes negatively pressurized.

If the combustion air openings are undersized or blocked, the furnace and water heater compete for air. The one with the weakest draft loses. That’s usually the water heater because its draft hood is more sensitive. Exhaust gases spill into the enclosure, then into the living space. Carbon monoxide detectors should be mandatory in any home with gas appliances, but they’re a response, not a prevention.

You can test this yourself with a worst-case depressurization test. Close all interior doors. Turn on all exhaust fans and the dryer. Open the furnace access door and hold a lit match near the draft hood. If the flame pulls into the hood, draft is fine. If it blows outward or flickers erratically, you have a backdraft problem.

This test isn’t just for professionals. Every homeowner with a gas appliance should run it once a year.

How to Build a Safe Enclosure (Louvered Doors & Vents)

You have two main options: build the enclosure with passive vents or install a louvered door. Both work, but the door is often easier because it provides one large opening.

For a louvered door, the CFM rating matters. The door’s total free area must meet the combustion air calculation from earlier. A standard 20×30-inch louvered door with 70% free area gives you roughly 420 square inches. That covers most residential setups. But check the louver manufacturer’s spec sheet. Some decorative louvers have much lower free area than they appear.

If you build a wall with grills instead, place them on opposite walls if possible. Cross-ventilation beats same-wall ventilation every time. Stale air exits high, fresh air enters low, and the room gets a proper sweep.

Use metal grills, not plastic. Plastic warps over time near heat sources and can melt in a worst-case scenario. Steel or aluminum grills with a corrosion-resistant finish hold up better.

Don’t forget the door undercut. If the enclosure door is solid, leave at least 1 inch of clearance under the door. That’s not enough for combustion air on its own, but it helps with room air circulation and service access.

High-Efficiency vs. Atmospheric: Why It Matters

The appliances themselves change the enclosure requirements. A high-efficiency condensing furnace (90%+ AFUE) uses a sealed combustion chamber. It pulls air from outside through a dedicated PVC pipe. It doesn’t need room air for combustion.

But the water heater next to it probably does. If the water heater is atmospheric draft, it still needs the combustion air openings sized for its BTU input. You can’t size the vents for the furnace alone just because the furnace is sealed.

Conversely, if both units are sealed combustion (some tankless water heaters and high-end furnaces), you can build a nearly airtight enclosure. You still need service clearance and venting, but the combustion air openings can be much smaller or eliminated entirely.

Mixed setups are the norm. Most homes have an atmospheric water heater and a condensing furnace. In that case, size the combustion air for the water heater’s input only. It’s often around 36,000 to 40,000 BTU/hr, which translates to 36-40 square inches of free area. That’s a single 8×8-inch grill on each wall.

Service Access: Don’t Trap the Technician

Think about the last time a technician serviced your water heater. They need to remove the burner door, clean the flame sensor, and possibly pull the entire tank. If the enclosure door is too small or the appliance is jammed against a wall, the tech will charge you for the struggle.

The 30-inch front clearance is the minimum. I’d argue for 36 inches if you have the space. It costs you a few extra inches of floor space but saves money on every future service call.

Also consider the condensate drain. High-efficiency furnaces produce gallons of acidic water per day. The drain line must slope continuously to a floor drain or condensate pump. If the enclosure is too tight, you can’t access the drain trap for cleaning. A clogged trap shuts down the furnace via the pressure switch.

When to Call a Professional vs. DIY

Framing and drywall are DIY-friendly. The combustion air calculations and venting connections are not. If you’re comfortable with basic carpentry, build the enclosure shell yourself. Then hire a licensed HVAC contractor to verify the combustion air sizing and inspect the vent connections.

This hybrid approach costs less than a full install but gives you the safety net of a professional review. Many jurisdictions require a permit for this work. The inspector will check the combustion air openings, clearance distances, and vent terminations. If you skip the permit, you risk an insurance denial later if something goes wrong.

One more thing: check your appliance warranties. Some manufacturers void the warranty if the unit operates in an enclosure that doesn’t meet their specified clearances. The warranty booklet lists exact requirements. Read it before you build.

Final Verdict: Safe Enclosure Checklist

• Calculate total BTU/hr of all gas appliances in the enclosure and size combustion air openings at 1 sq inch per 1,000 BTU/hr (two openings, one high and one low).
• Maintain at least 30 inches of front clearance for service access; check nameplate for side and rear clearances.
• Never combine furnace and water heater flues; keep vent pipes separate and sloped correctly.
• Run a worst-case depressurization test with all exhaust fans on to confirm no backdrafting.
• Use metal louvered grills or doors with verified free area ratings; don’t eyeball it.
• For high-efficiency furnaces, size combustion air only for the atmospheric water heater’s input.
• Get a permit and a professional inspection before closing up the walls.

Enclosing a furnace and water heater together is completely doable. It just requires respect for the physics of combustion. Get the air flow right, keep the clearances honest, and you’ll have a clean, safe mechanical room that passes inspection every time. If you’re also working through the electrical side of the water heater, check out this guide on running a 220V water heater on 110V to avoid a dangerous mismatch. And if you’re planning a tankless upgrade, read about tankless water heater cabinet installation before you build.
